THRON² 6.8 CARACTERÍSTICAS
Powerful dynamic Bosch Performance CX e-drive with integrated, removable 625 Wh battery
Sensitive 130 mm F.O.L.D. Chassis: RockShox Recon suspension fork and SR Suntour rear shock
Exemplary Shimano SLX shifting and dependable 4-piston brakes
More than just trails
-
Super powerful and dynamic e-motor
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the THRON² rides well-balanced. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
-
Optimal suspension performance in any situation
With the THRON², the emphasis is on comfort and fun while out on the trail. This is thanks to our proprietary F.O.L.D. The chainstay works efficiently in a kinematic manner each time you push the pedals, while the sensitive suspension absorbs all bumps.
-
Diverse usage
From trail tours through alpine terrain to your daily commute and bikepacking: anything is possible with the THRON². With certain changes to the build, you can add various features to your THRON² – depending on where your e-MTB tour is going.

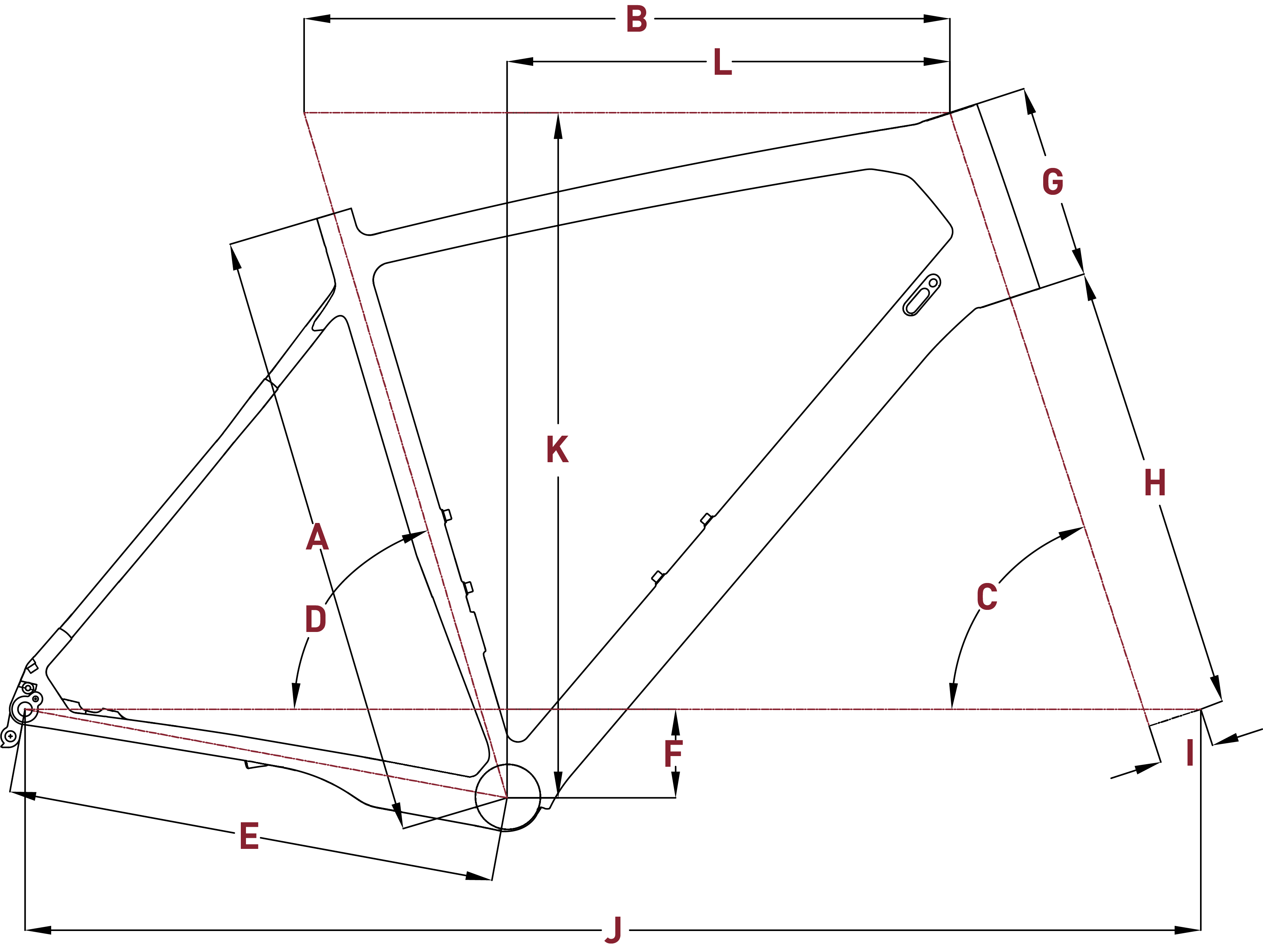

geometria
| S | M | L | XL | ||
|---|---|---|---|---|---|
| Talla | 40 | 44 | 47 | 50 | |
| Seat post length | 125 | 150 | 170 | 170 | |
| Handlebar width | 760 | 760 | 760 | 760 | |
| Stem Length (MM) | 60 | 60 | 60 | 60 | |
| Crankarm length | 165 | 165 | 165 | 165 | |
| A | Talla (MM) | 400 | 440 | 470 | 500 |
| B | Effective Top Tube (MM) | 584 | 603 | 627 | 651 |
| C | Head Tube Angle (°) | 66.8 | 66.8 | 66.8 | 66.8 |
| D | Effective Seat Tube Angle (°) | 74.5 | 74.5 | 74.5 | 74.5 |
| E | Chainstay (MM) | 455 | 455 | 455 | 455 |
| F | BB Drop (MM) | 25 | 25 | 25 | 25 |
| G | Head Tube Length (MM) | 115 | 130 | 147 | 163 |
| H | Fork Length (MM) | 540 | 540 | 540 | 540 |
| I | Fork Offset (MM) | 51 | 51 | 51 | 51 |
| J | Wheelbase (MM) | 1175.4 | 1196.3 | 1223 | 1249.3 |
| K | Stack (MM) | 609.7 | 623.5 | 639.1 | 653.8 |
| L | Reach (MM) | 415 | 430 | 450 | 470 |
especificaciones
Frame material
aluminium
Frame
FO20THRON2FULLSUSPENSIONALU
Fork
ROCKSHOXRECONRL29EMTBBOOST130MM
Travel Fork
130 mm
Shock
SUNTOUREDGELOR19045258
Motor
BOSCHPERFOMANCECXGEN4
Battery Watt-hours
625
Battery Ampere hours
167AH
Mostrar
FOCUSBOSCHPURION
Shifter
SHIMANOSLXSLM7100
Rear derailleur
SHIMANOSLXRDM7100
Sprocket
SHIMANOSLXCSM710012S1151T
Chain
SHIMANOM7100
Crankset
FSACK320
Bottom Bracket
LEERNURBINDESTRICH
Transmission of drive
VORNE34HINTEN1051
Handlebar
LEECHIHB3188OHNE318760
Grips
VELOVLG1670D3
Stem
LEECHIDA205AENEIN
Headset
VPCOMPONENTS56286ZS5640
Saddle
VELOPROXIM
Seatpost
KINDSHOCKE30ISKS316X485MMNEIN,KINDSHOCKE30ISKS316X485MMREMOTE,KINDSHOCKE30I316X380MMREMOTE
Brakes
SHIMANOBRMT420
Brake lever description
SHIMANOBRMT420
Brake
disc
Rims
RODITRYP30OHNEGEST
Rear hub
NOVATECKEINED162SB148STECK12BOOST
Front Hub
NOVATECD041SBB31STECK15BO
Tires
SCHWALBENOBBYNICPERFORMANCE65622
Gears
12
Bike weight incl. battery in kg.
24,0 kg
Talla
40,44,47,50
* Sujeto a modificaciones técnicas sin previo aviso. Excepto errores y omisiones.
** Peso de talla M, especificación normal y sin pedales.
