IZALCO MAX Dura Ace

geometrie specifiche
7.499 CHF
SKU
FO0010004v2018

IZALCO MAX Dura Ace Features

Cuadro ultraligero, solo 735 g

Grupo de cambio completo Shimano R9100 Dura Ace

Ruedas veloces de carbono Zipp y neumáticos Continental

Como un profesional

  • Máquina de carreras de alta gama sin compromisos

    Geometría de competición

  • El cuadro de serie más ligero del mundo

    Con frenos de disco o de llanta

  • Izalco Max

    El cuadro de serie más ligero del mundo

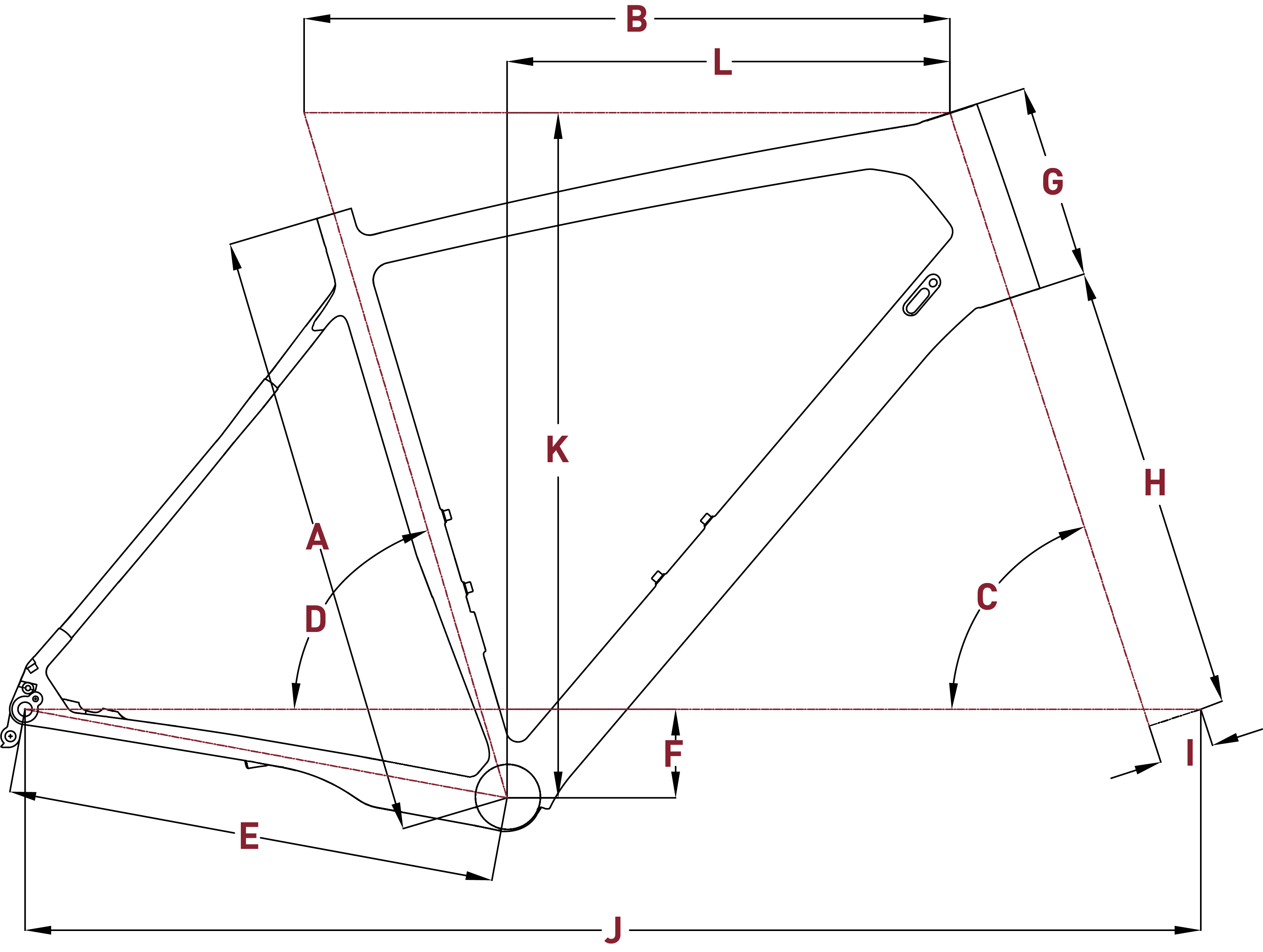

geometrie

XXS XS S M L XL XXL
Frame size cm 48 50 52 54 56 58 61
A Dimensione (MM) 480 500 520 540 560 580 610
B Effective Top Tube (MM) 521 530 536 549 565 580 604
C Head Tube Angle (°) 70.8 71.4 71.7 72.5 73.5 73.6 73.7
D Effective Seat Tube Angle (°) 73.8 73.6 73.6 73.5 73.5 73.4 73.2
E Chainstay (MM) 415 415 415 415 415 415 415
F BB Drop (MM) 72 71 71 70 70 69 68
G Head Tube Length (MM) 110 115 120 135 160 180 200
H Fork Length (MM) 370 370 370 370 370 370 370
I Fork Offset (MM) 43 43 43 43 43 43 43
J Wheelbase (MM) 980 982 987 992 998 1012 1033
K Stack (MM) 510 515 521 537 565 583 601
L Reach (MM) 373 378 383 390 398 406 422

specifiche

Telaio
MAX technology carbon, caliper, PF30BB, 130 mm quick release dropouts, external brake cable routing
Forcella
MAX technology carbon, caliper, 100 mm quick release
Front derailleur
Shimano Dura Ace R9100, braze on
Rear derailleur
Shimano Dura Ace R9100, 11-speed, short cage
Sprocket description
Shimano Dura Ace R9100, 11-30T
Crankset description
Shimano Dura Ace R9100, 52/36T
Manubrio
Easton EC90 Aero, carbon, drop: 125mm, reach: 80mm
Attacco Manubrio
Easton EA90, aluminium, 31.8mm, +/- 10 degree
Saddle description
Prologo Scratch STN Rail
Reggisella
BBB CPX Plus, Carbon, 27,2mm, 350mm, set-back: 20mm
BrakeSystem
Shimano Dura Ace R9100, caliper, carbon pads
Ruote
ZIPP 302, quick release, carbon, 100/130 mm, 20/24 spokes, 17 mm inner rim width
Tire Description
Continental GP4000S II, 700 x 25C, Folding
Freni
Shimano Dura Ace R9100
Freni genere
Caliper
Chain ring
2x
Cambio genere
Mechanical shifting
