IZALCO Max Ultegra Di2

geometrie specifiche
Trova la misura del telaio più adatta a te
SKU
FO0010014v2018

IZALCO Max Ultegra Di2 Caratteristiche

Telaio super leggero: solo 735 g

Gruppo cambio completo Shimano R8050 Ultegra Di2

Ruote veloci totalmente in carbonio Mavic e gomme Continental

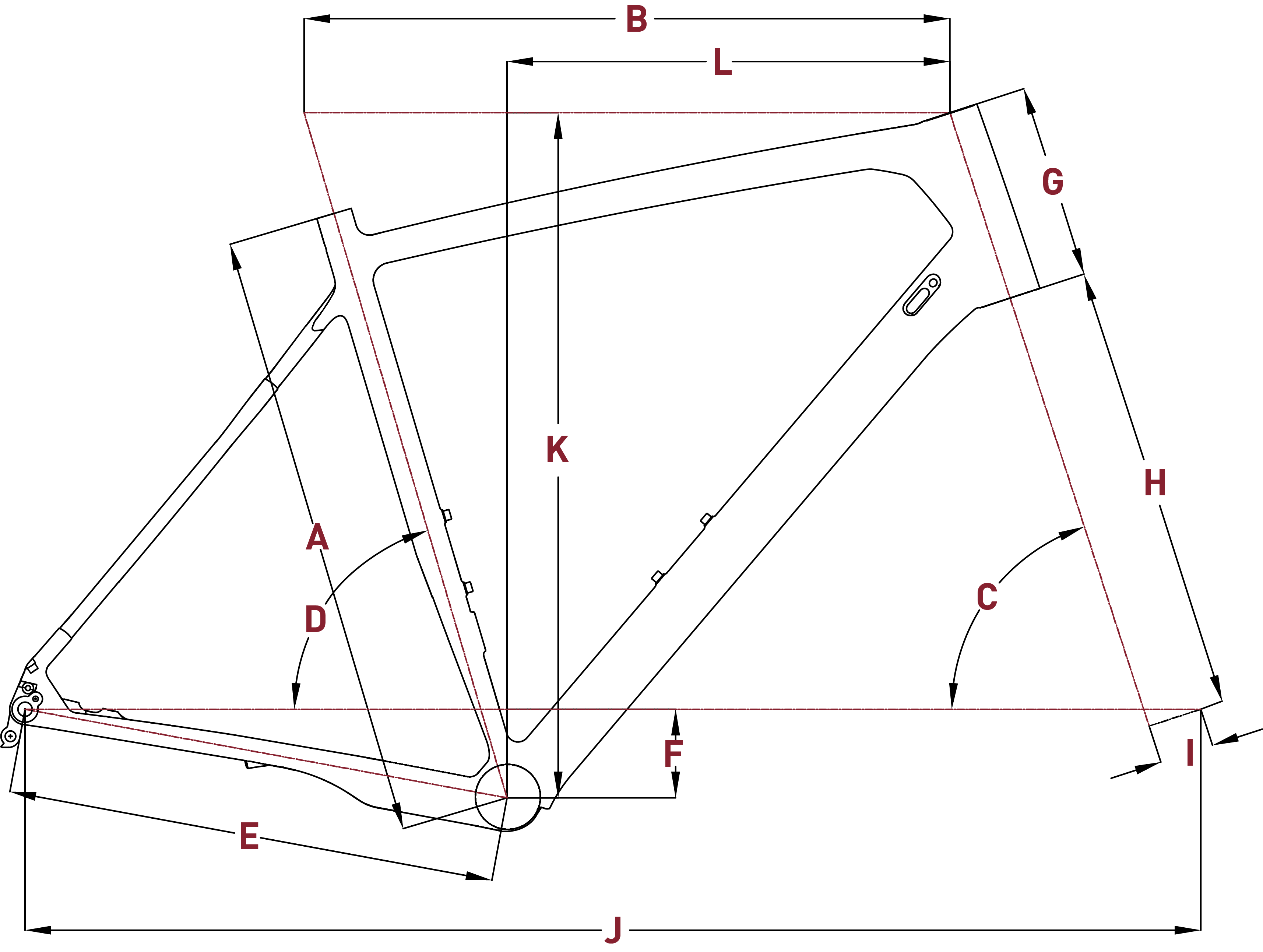

geometrie

XXS XS S M L XL XXL
Taglia 48 50 52 54 56 58 61
Seat post length XXS XS S M L XL XXL
Handlebar width 400 400 420 420 420 440 440
Stem Length (MM) 90 90 100 110 110 120 120
Crankarm length 170 170 172,5 172,5 172,5 175 175
A Taglia (MM) 480 500 520 540 560 580 610
B Effective Top Tube (MM) 521 530 536 549 565 580 604
C Head Tube Angle (°) 71 71.5 71.75 72.5 73.5 73.5 73.5
D Effective Seat Tube Angle (°) 74 73.7 73.7 73.5 73.5 73.3 73
E Chainstay (MM) 405 405 405 405 405 405 405
F BB Drop (MM) 70 70 70 70 70 70 70
G Head Tube Length (MM) 110 115 120 135 160 180 200
H Fork Length (MM) 370 370 370 370 370 370 370
I Fork Offset (MM) 43 43 43 43 43 43 43
J Wheelbase (MM) 970 972 977 981 988 1001 1022
K Stack (MM) 508 515 520 537 565 584 603
L Reach (MM) 375 379 384 390 398 405 420

specifiche

Frame material
carbonio
Cuadro
MAX technology carbon, caliper, PF30BB, 130 mm quick release dropouts, Di2 ready, external brake cable routing
Horquilla
MAX technology carbon, caliper, 100 mm quick release
Desviador
Shimano Ultegra R8050, Di2, braze on
Cambio
Shimano Ultegra R8050, Di2, 11-speed, short cage
Cadena
Shimano Ultegra HG701
Bielas
Shimano Ultegra R8000, 52/36T
Bottom Bracket
Pressfit
Manillar
Easton EA50, Aluminium, drop: 125 mm, reach: 80mm
Potencia
BBB Deluxe, aluminium, 31.8mm, +/- 7 degree
Tija de sillin
1-1/8", tapered, IS 47/33
Sillin
Prologo Scratch STN Rail
Tija de sillín
BBB CPX Plus, Carbon, Di2 Ready, 27,2mm, 350mm, set-back: 20mm
Frenos
Shimano Ultegra R8000, caliper
Freni
Shimano Ultegra R8050, Di2
Brake
Caliper
Ruedas
Mavic Cosmic Pro Carbon, quick release, carbon, 100/130 mm, 20/20 spokes, 17 mm inner rim width
Cubiertas
Mavic Yksion PRO Griplink (F) / Powerlink (R), 700 x 25C
Gears
22
Taglia
58,52,54,61,48,50,56
Plateaux
2x
Cambio genere
Electric shifting
* Soggetto a modifiche tecniche senza preavviso. Errori ed omissioni esclusi. ** Peso nella taglia M, specifiche standard e senza pedali.
