THRON 6.9

Geometry Specification
CHF 3,399.00
N/A
Sku Number
FO3170005v2021

THRON 6.9 Features

Aluminium frame with tool bag

130 mm FOX Float 34 Rhythm fork & Float DPS shock

Shimano XT components

Hero of your home turf

  • Optimized kinematics for strong progression

    With the upgrade of our well-known F.O.L.D. kinematics, your THRON 6.9 is ready for even more trail fun. We kept the well-liked sensitivity of the F.O.L.D. but changed the positioning of our kinematics within the frame for strong bottom-out resistance. The characteristics are completely progressive which results in a chassis that offers a lot of stability in any terrain. This allows you to handle any trail while the chassis still provides comfort for long laps. Furthermore, the lower standover of the THRON 6.9 gives you more space to play on the trail.

  • For your inner child

    The THRON is made to surf trails. It is made for your inner child, made to have fun and awaken the explorer that you are. The geometry of the THRON makes you feel comfortable and confident in any situation. You are in control whether it's a technical or flow trail, no matter you go up or down. Pure riding fun first. You stay relaxed on long tours and go fast on trails. Smooth running 29" wheels support both riders experienced and beginner.

  • Integrated and clean

    It's all about the details: The specially developed C.I.S. (Cockpit Integration Solution) design ensures a clean cockpit and constantly seamless shifting and braking. All cables run from the handlebar into the stem and through the headset into the frame. Furthermore, the THRON comes with a tool bag between the top and down tube angle. The tool bag offers space for all your essentials like a multi-tool, tube and a small pump.

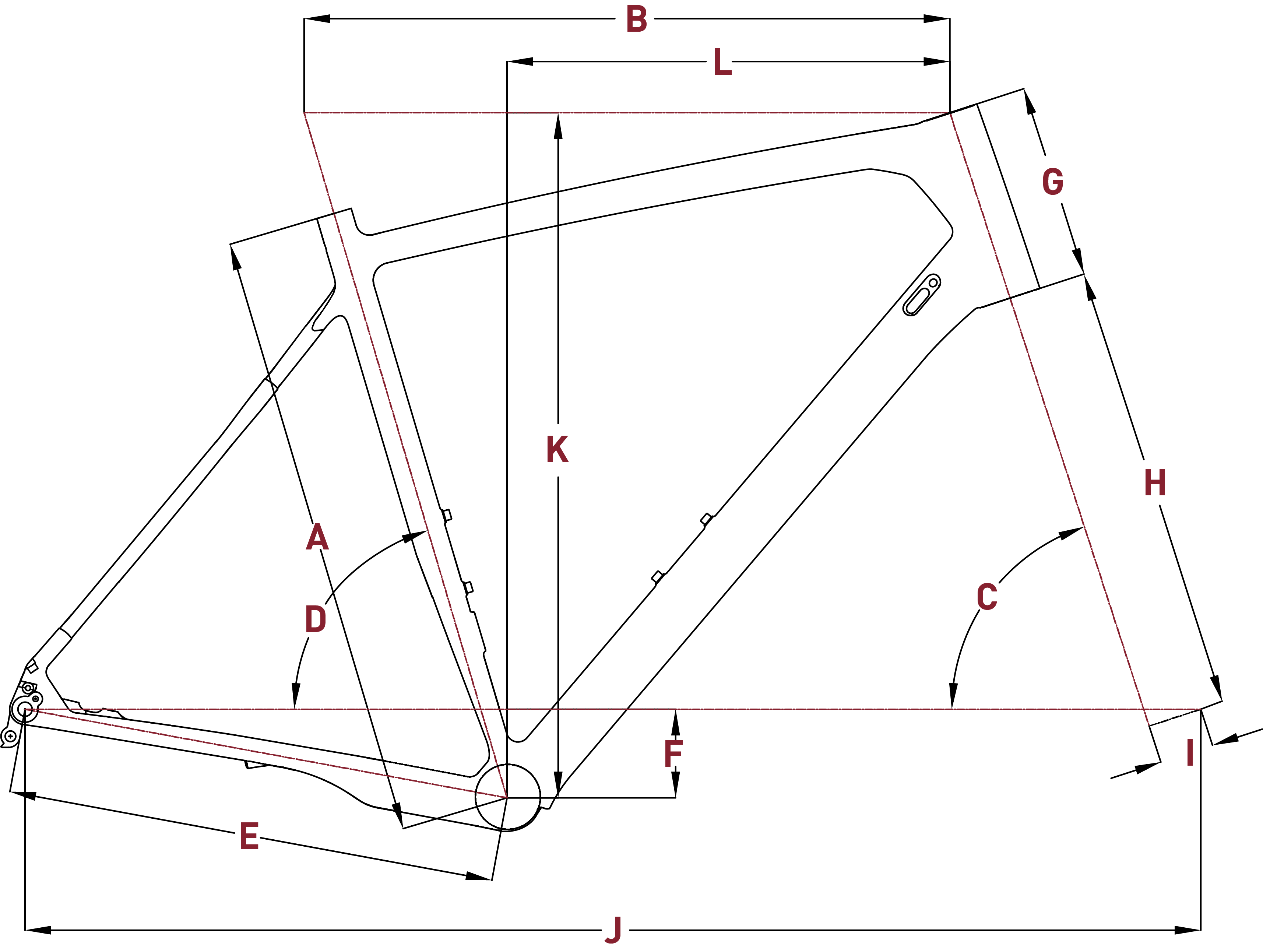

Geometry

S M XL
Size in mm 390 470 420
Handlebar width 760 760 760
Stem length 50 50 50
Crank length 170 170 170
A Seat tube length 390 530 420
B Top tube length 572 674 605
C Head angle (°) 66.5 66.5 66.5
D Seat angle (°) 75 75 75
E Chainstay length 435 435 435
F Bottom bracket drop 35 35 35
G Head tube length 100 160 110
H Fork length 541 541 541
I Fork offset 46 46 46
J Wheelbase 1139 1253 1173
K Stack 605 651 615
L Reach 410 500 440
M Standover height 755 755 755
Seatpost length 390

Specification

Frame
7005 hydroformed aluminum, 130 mm F.O.L.D. Gen2 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Fork
FOX 34 Float Rhythm 29, Grip Remote, 110x15 mm, 44 mm rake
Travel of suspension fork
130 mm
Shock
FOX Float DPS Performance, 190x45 mm, hardware: 25,0 x 8mm, custom tune
Shifter
Shimano Deore XT M8100, 12-speed
Rear derailleur
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore M6100, 12-speed
Chain
Shimano Deore CN-M6100, 12-speed
Crankset
Shimano Deore XT FC-M8100, Hollowtech II
Transmission of drive
front: 32, rear: 10-51
Handlebar
Aluminium 35 mm, riserbar 11 mm, 760 mm
Grips
BBB Cobra BHG-96
Stem
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Saddle
Selle Italia X3
Seatpost
Post Moderne dropper post PM-171, 31.6 mm
Brakes front | rear
Shimano XT M8120 4-piston (front) / M8100 2-piston (rear) | Shimano XT M8120 4-piston (front) / M8100 2-piston (rear)
Front brake disc
203 mm
Rear brake disc
180 mm
Rim front
RODI TRYP25, 25-622
Rim rearm rear
RODI TRYP25, 25-622
Front hub
Novatec D041, 15x110 mm
Rear hub
Novatec D462SB, 12x148 mm
Spokes
Niro, black
Tyres front | rear
Maxxis Dissector, 2.4 Exo, 61-622 | Maxxis Dissector, 2.4 Exo, 61-622,Maxxis Dissector, 2.4 Exo, 61-622 | Maxxis Rekon 2.4
Weight
15.4 kg (),15.6 kg ()
Permissible system weight
110 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
