JAM² 8.7

Geometry Specification
€5,399.10 Regular Price €5,999.00
Find the right frame sizes
N/A
Set up and set at the dealer in three weeks.
Sku Number
FO5400059v2023

JAM² 8.7 Features

Bosch CX e-drive & 625 Wh battery

160 mm DVO Diamond E3 fork & 150 mm RockShox Deluxe Select shock

SRAM NX Eagle 12-speed

Up your game on any trail

  • Super powerful and dynamic Bosch Performance Line CX e-drive

    Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 8.7 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 625 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery. The JAM² 8.7 features the Bosch System Controller and wireless Mini Remote.

  • Geometry for maximum fun on all types of trails

    The carbon frame with alloy chainstays makes the JAM² 8.7 light and nimble. Battery and drive unit are perfectly integrated into the e-MTB's frame giving it a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the JAM² 8.7 more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 8.7 according to your riding preferences from 65.5° to 64.5°.

  • Full control in any situation

    When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 8.7, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.

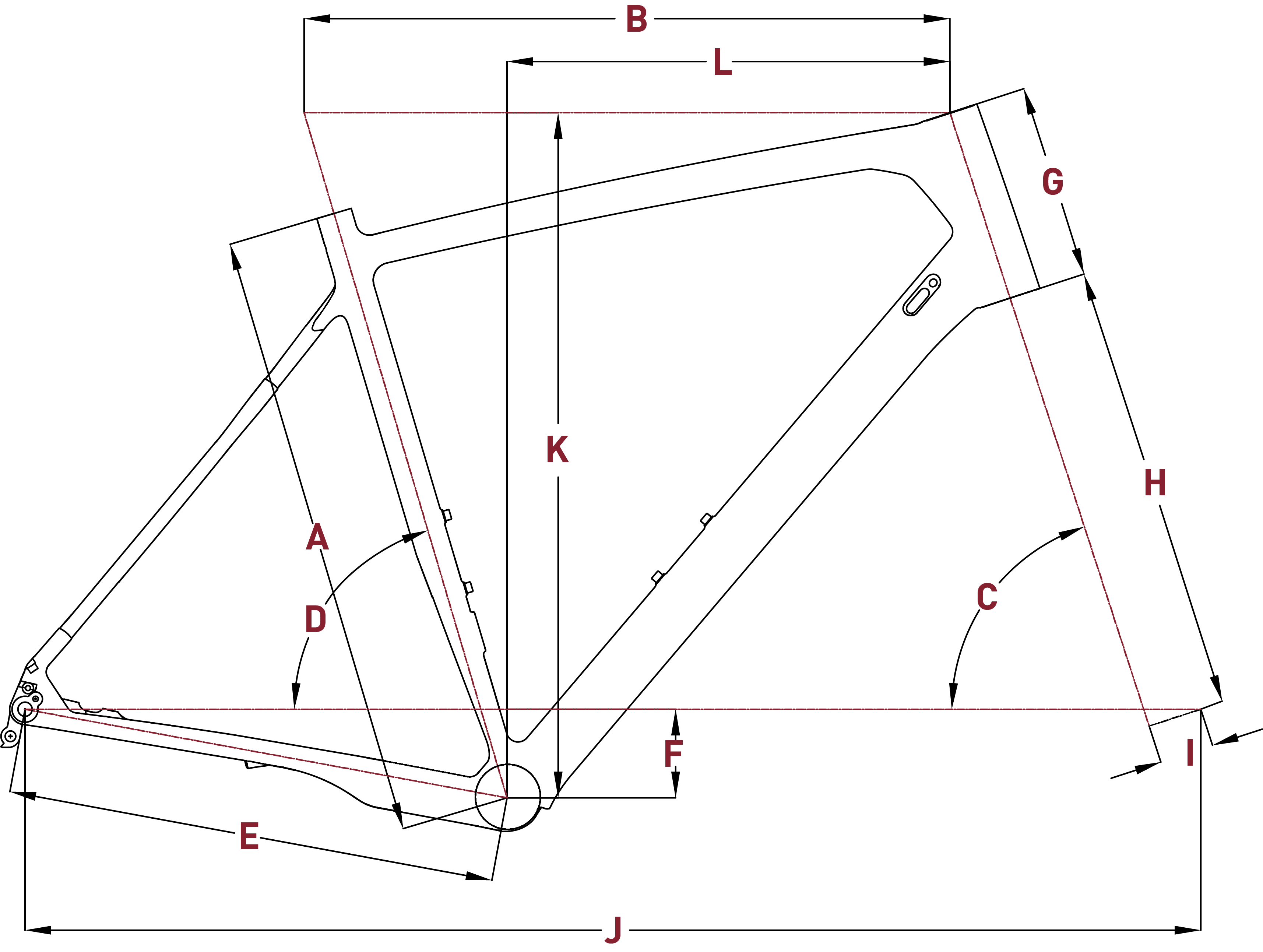

Geometry

S M L XL
Size in mm 390 420 440 460
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 608 637 672
C Head angle (°) 65.5 65.5 65.5 65.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 450 450 450 450
F Bottom bracket drop 25 25 25 25
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1198 1128 1261 1300
K Stack 616 616 634 652
L Reach 430 460 485 515
M Standover height 800 800 800 800
S M L XL
Size in mm 390 420 440 460
Handlebar width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Seatpost length 390 440 480 480
A Seat tube length 390 420 440 460
B Top tube length 578 608 637 672
C Head angle (°) 64.5 64.5 64.5 64.5
D Seat angle (°) 76.5 76.5 76.5 76.5
E Chainstay length 450 450 450 450
F Bottom bracket drop 25 25 25 25
G Head tube length 100 100 120 140
H Fork length 571 571 571 571
I Fork offset 44 44 44 44
J Wheelbase 1210 1240 1273 1312
K Stack 616 616 634 652
L Reach 430 460 485 515
M Standover height 800 800 800 800

Specification

Frame
Carbon front triangle, aluminium rear triangle, 150 mm F.O.L.D. GEN2 kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
Fork
DVO Diamond E3, 110x15 mm, 44 mm rake
Travel of suspension fork
160 mm
Shock
Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 25.0 mm
Motor
Bosch Performance Line CX Smart System, 85 Nm
Battery
Bosch PowerTube Li-Ion (625 Wh)
Display & Remote
Bosch System Controller + Mini Remote
Shifter
SRAM SX Eagle, 12-speed
Rear derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1230 NX Eagle, 12-speed
Chain
SRAM SX Eagle, 12-speed
Crankset
Samox EC40 ISIS
Transmission of drive
front: 36, rear: 11-50
Chainring
SRAM PG-1230 NX Eagle, 12-speed
Bottom bracket
Integrated in Drive Unit
Handlebar
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
Grips
Herrmans DD 41B
Stem
FOCUS C.I.S. 2.0 MTB , 35 mm, aluminium
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated, 1.5/1.8" angle headset
Saddle
Selle Royal Groove SRX
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Brakes front | rear
SRAM GUIDE T | SRAM GUIDE T
Front brake disc
200 mm
Rear brake disc
203 mm
Rim frontfront front / rear
RaceFace AR30 Offset
Rim rear
RaceFace AR30 Offset
Front hub
Novatec D041, 15x110 mm thru axle
Rear hub
Novatec D462, 12x148 mm
Spokes
Niro, black
Tyres front | rear
Maxxis Minion DHF, Dual EXO TR, 29 x 2,6" | Maxxis Minion DHF, Dual EXO TR, 29 x 2,6"
Weight
23.7 kg (625 Wh)
Permissible system weight
150 kg
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
