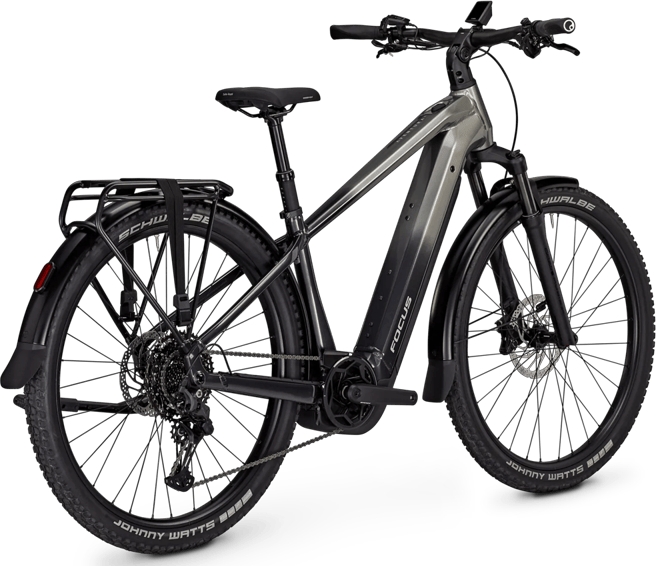

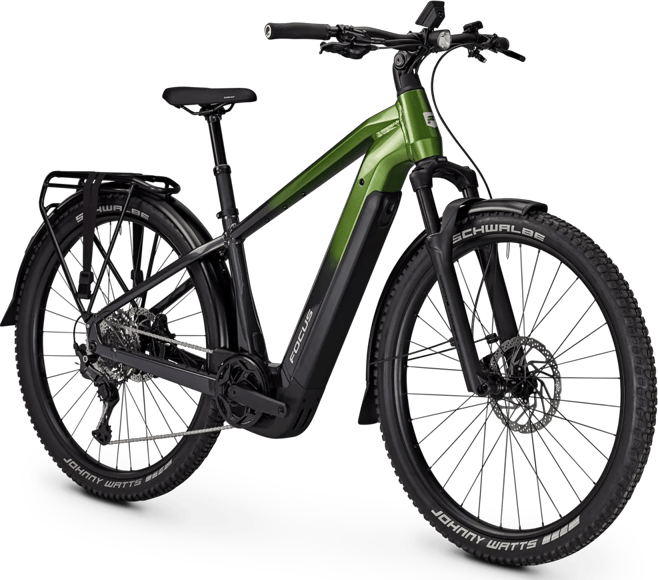

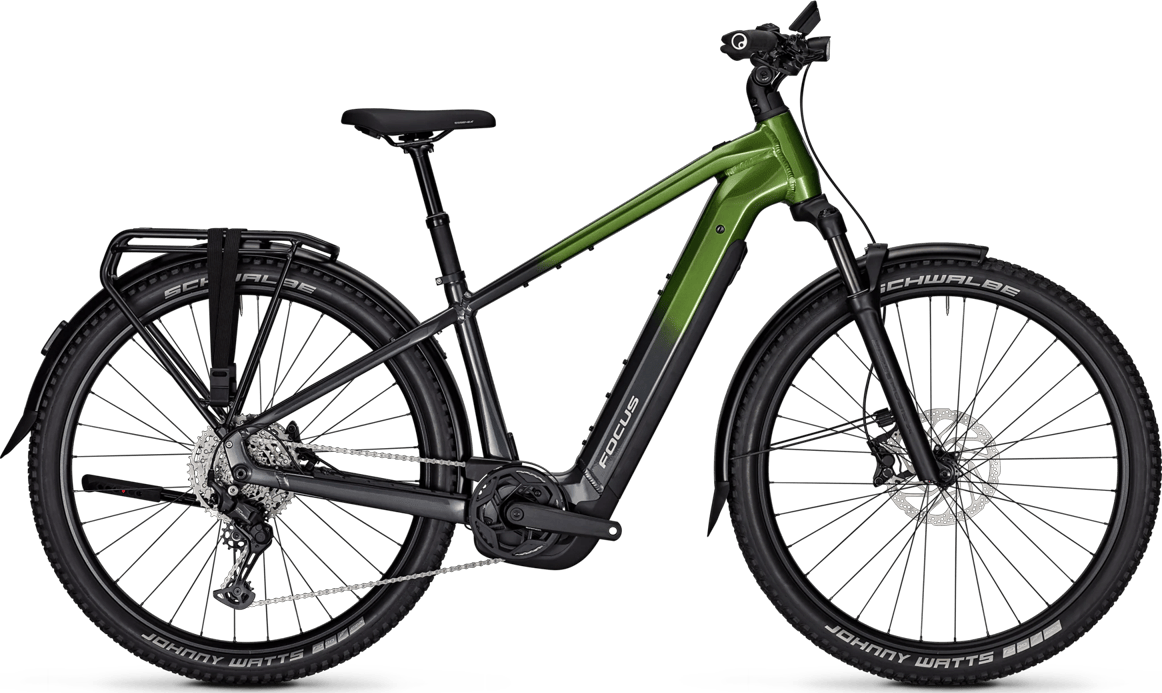

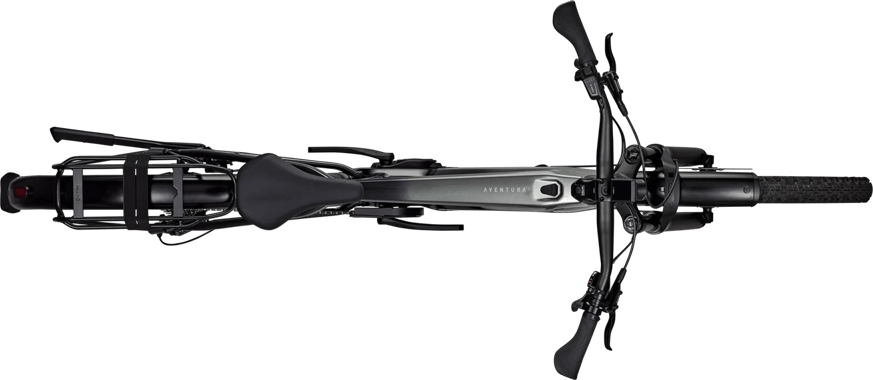

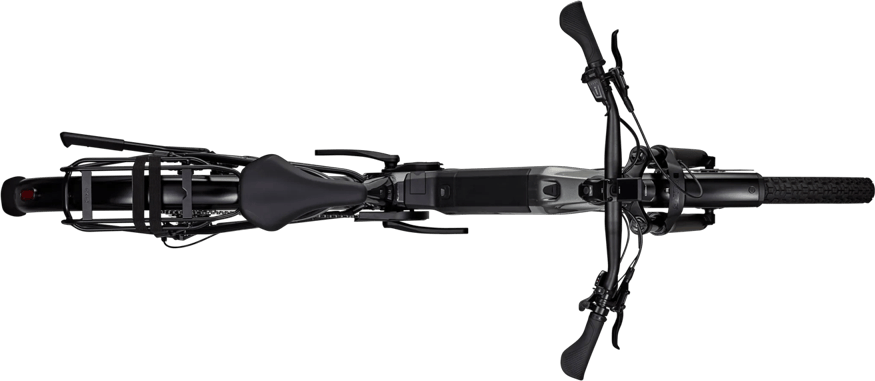

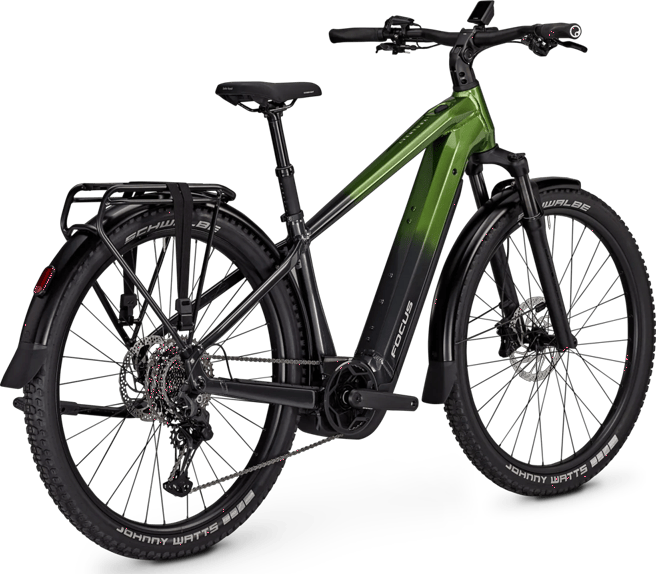

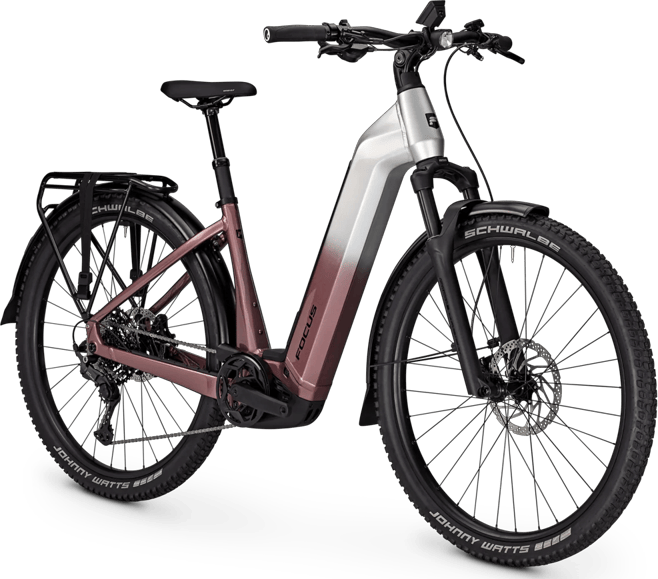

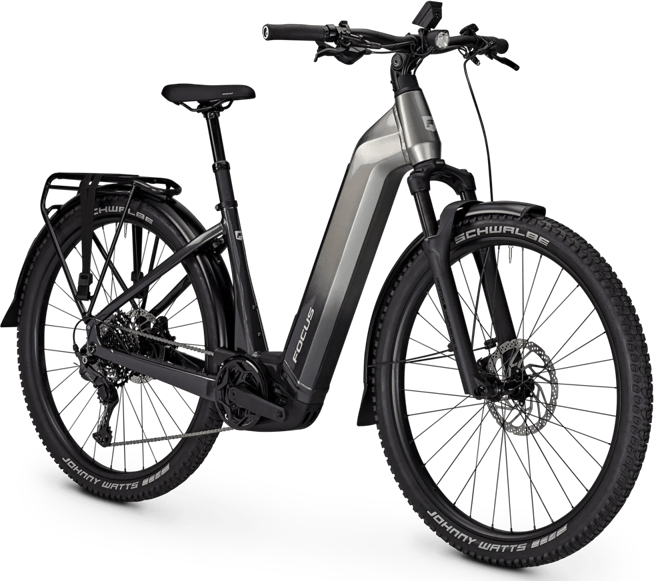

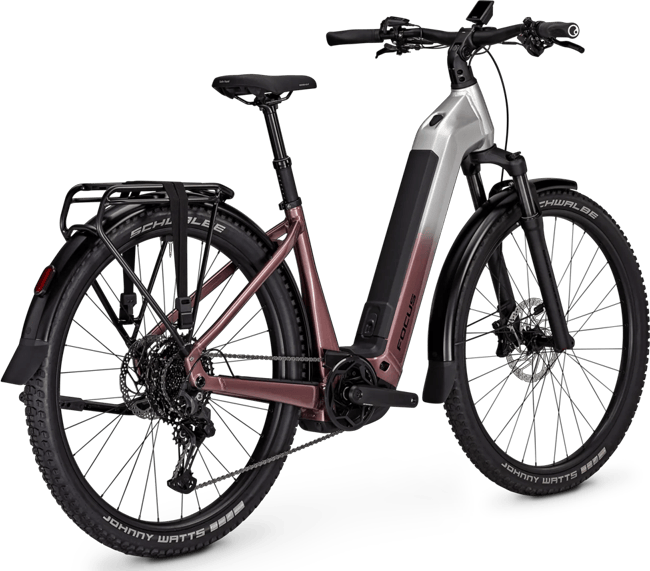

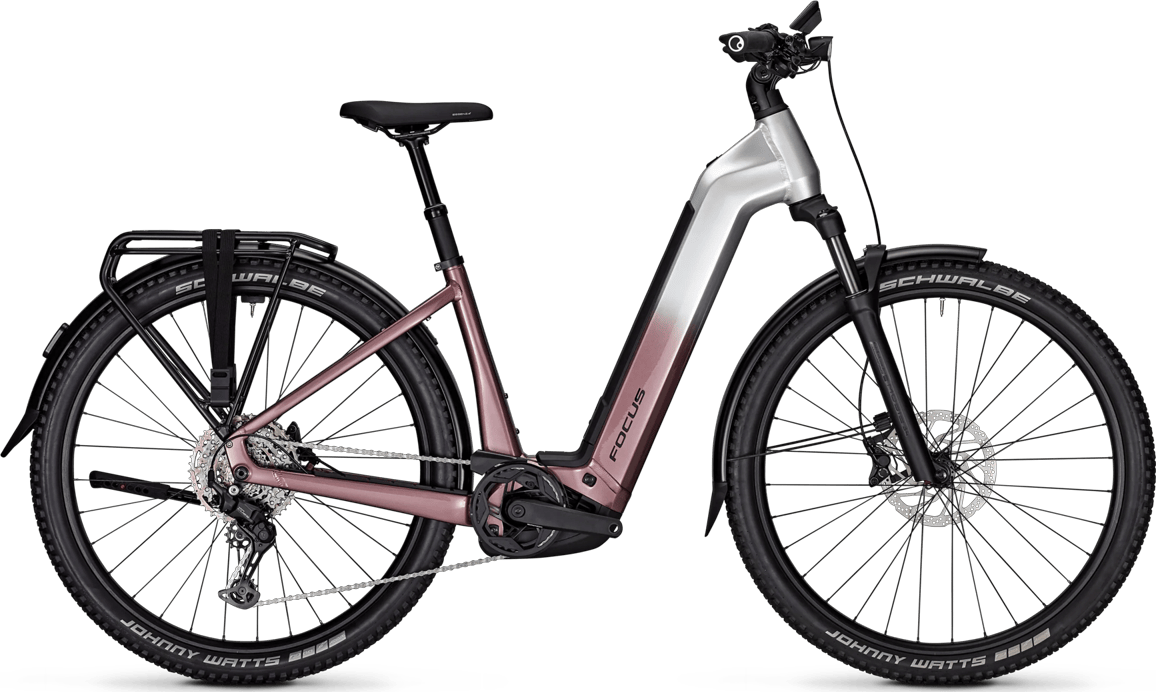

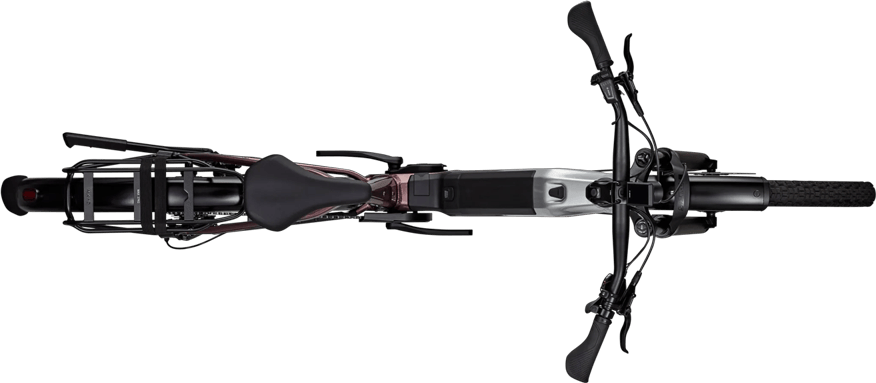

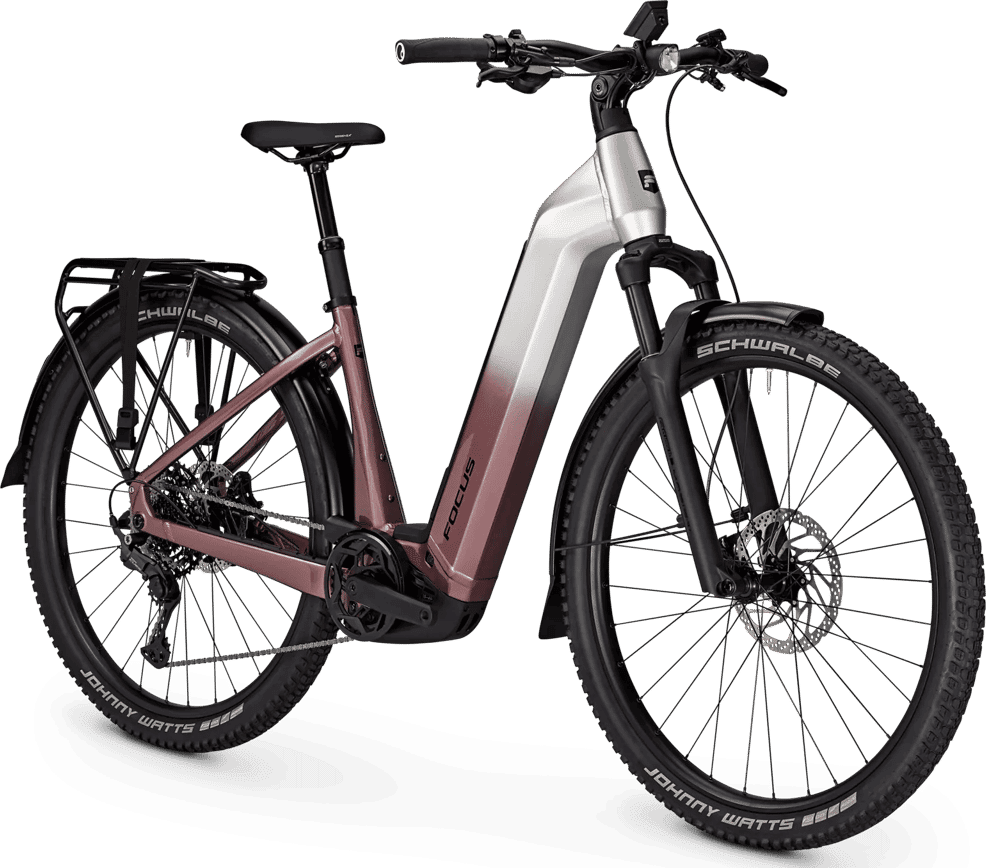

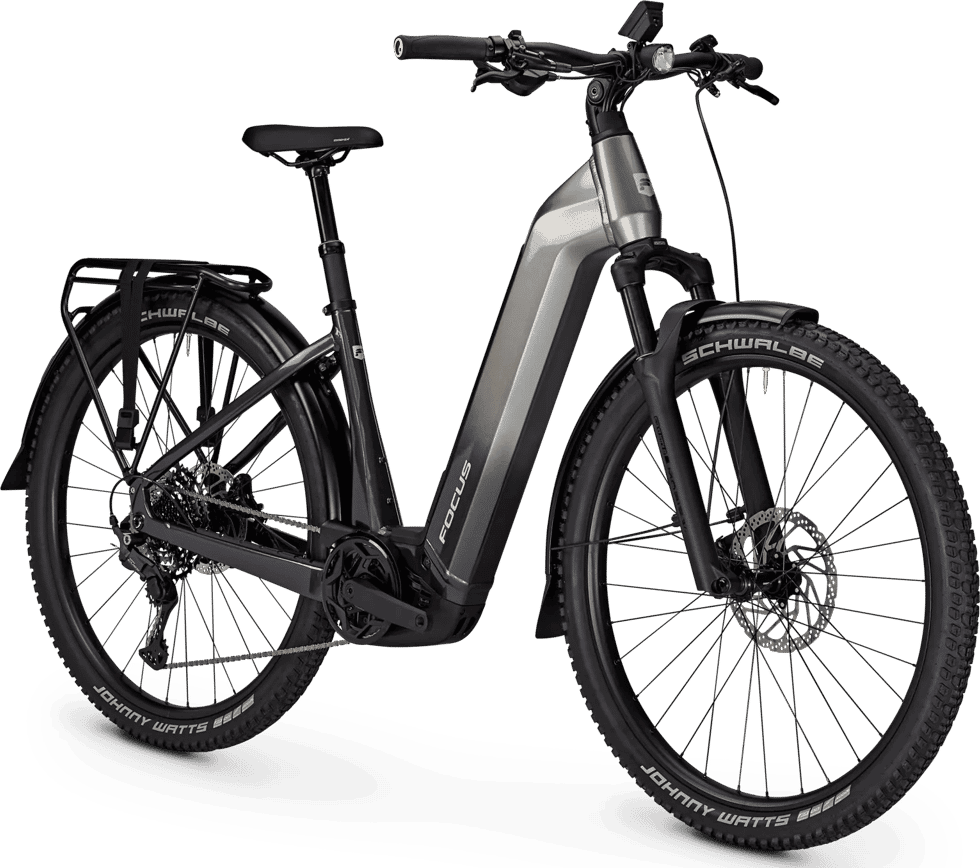

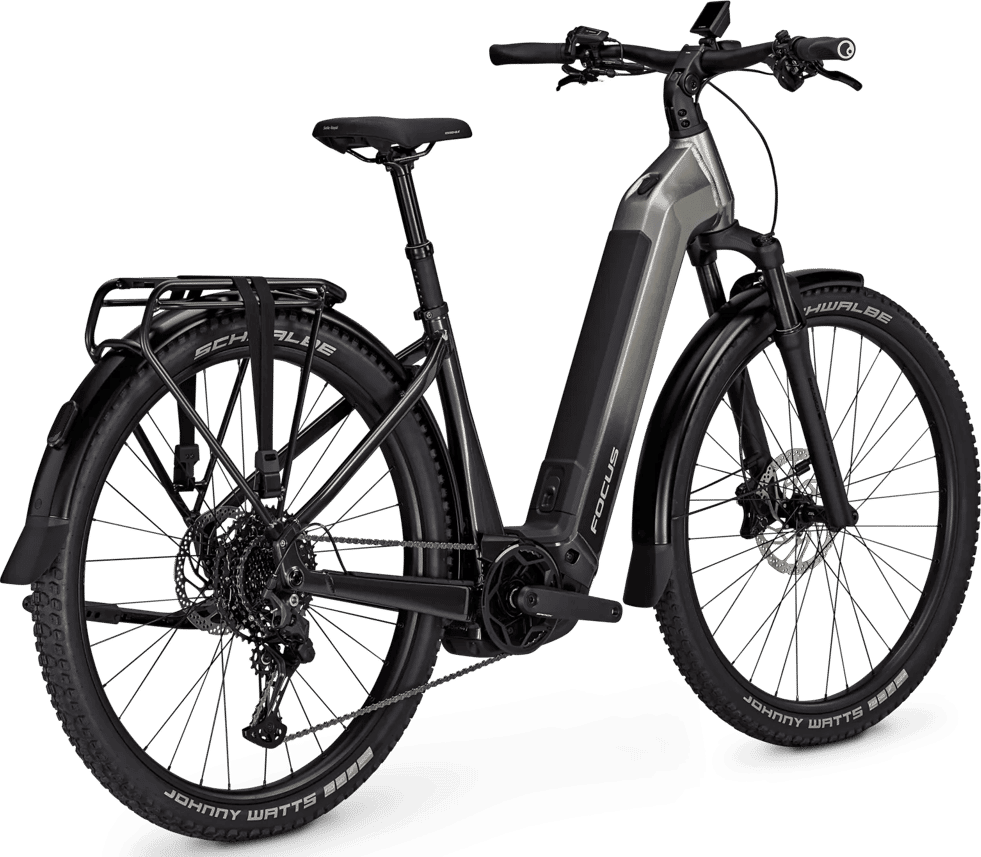

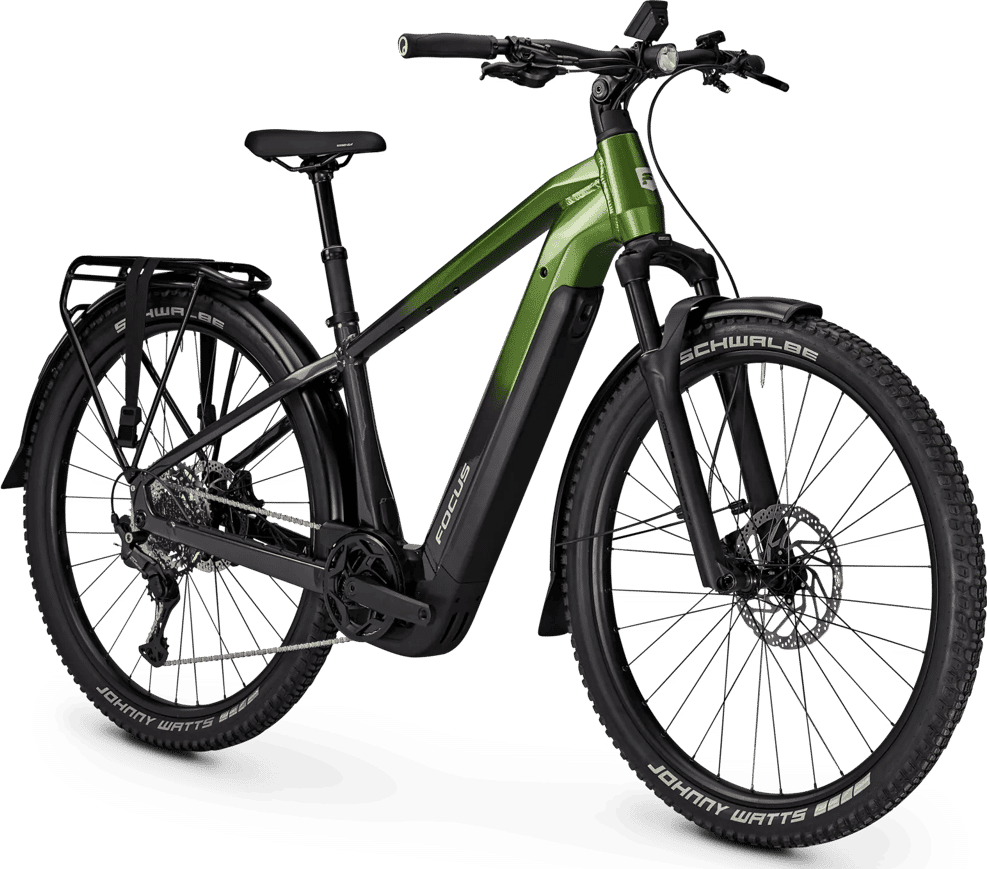

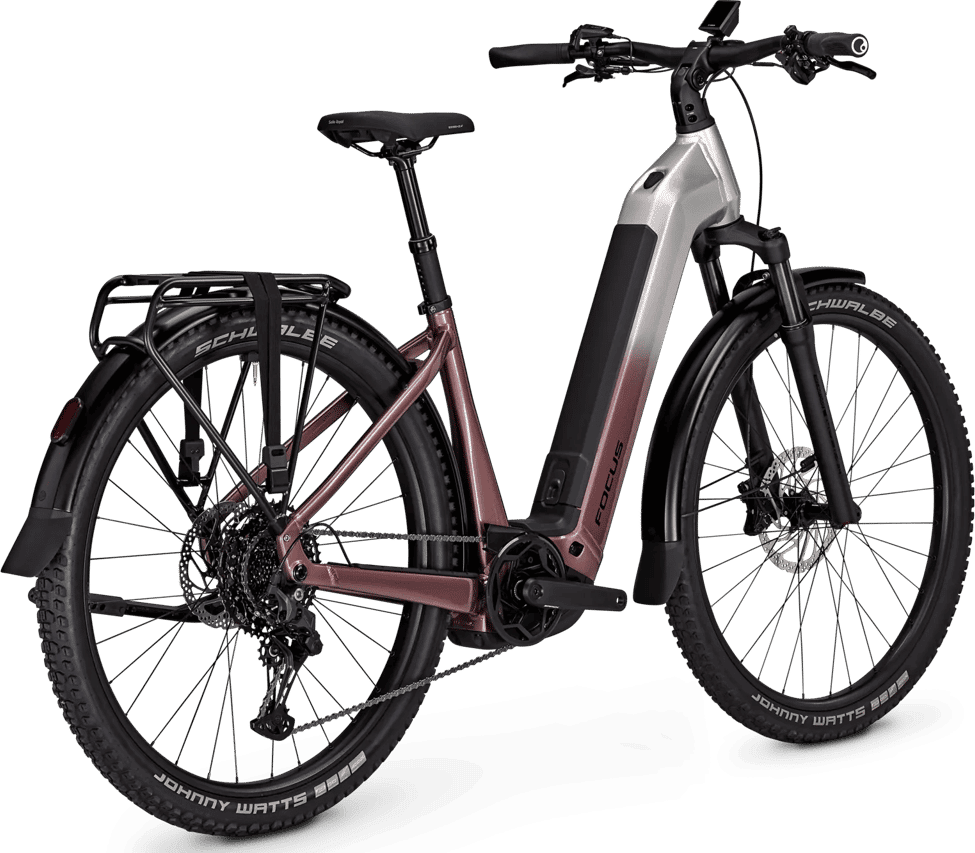

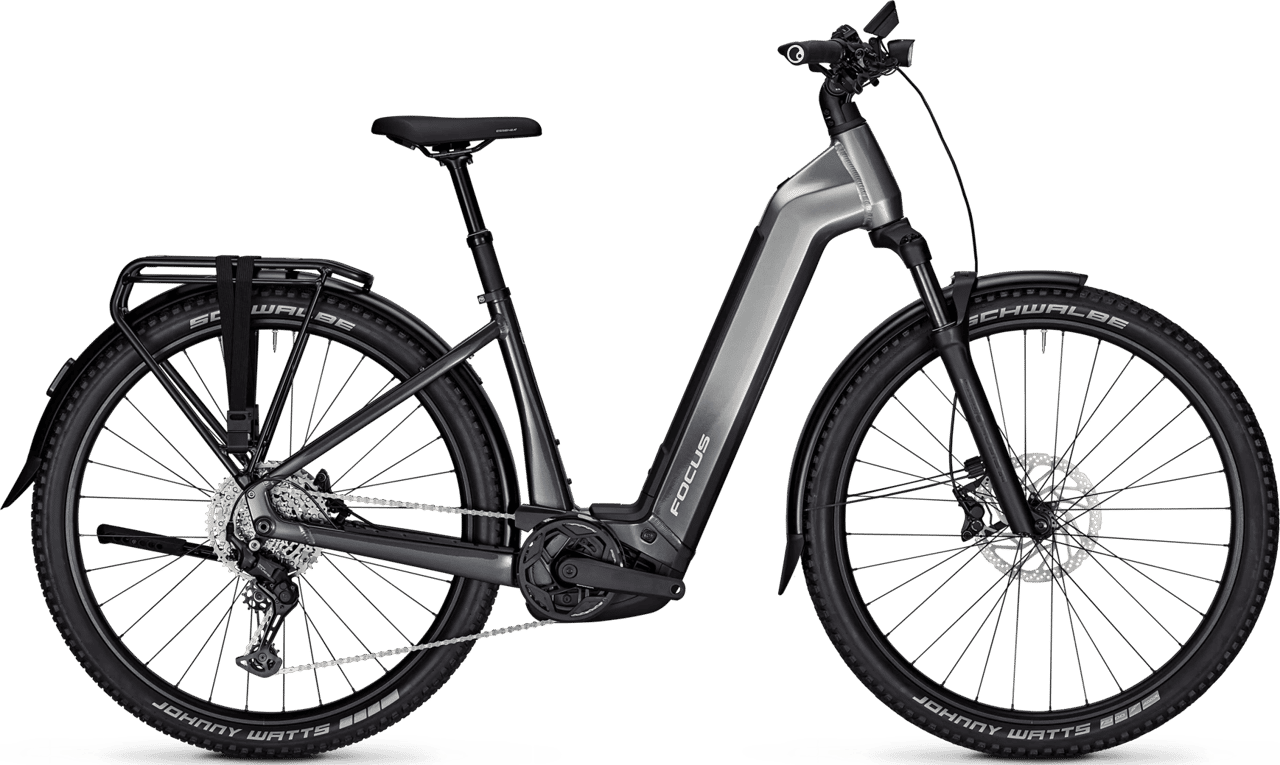

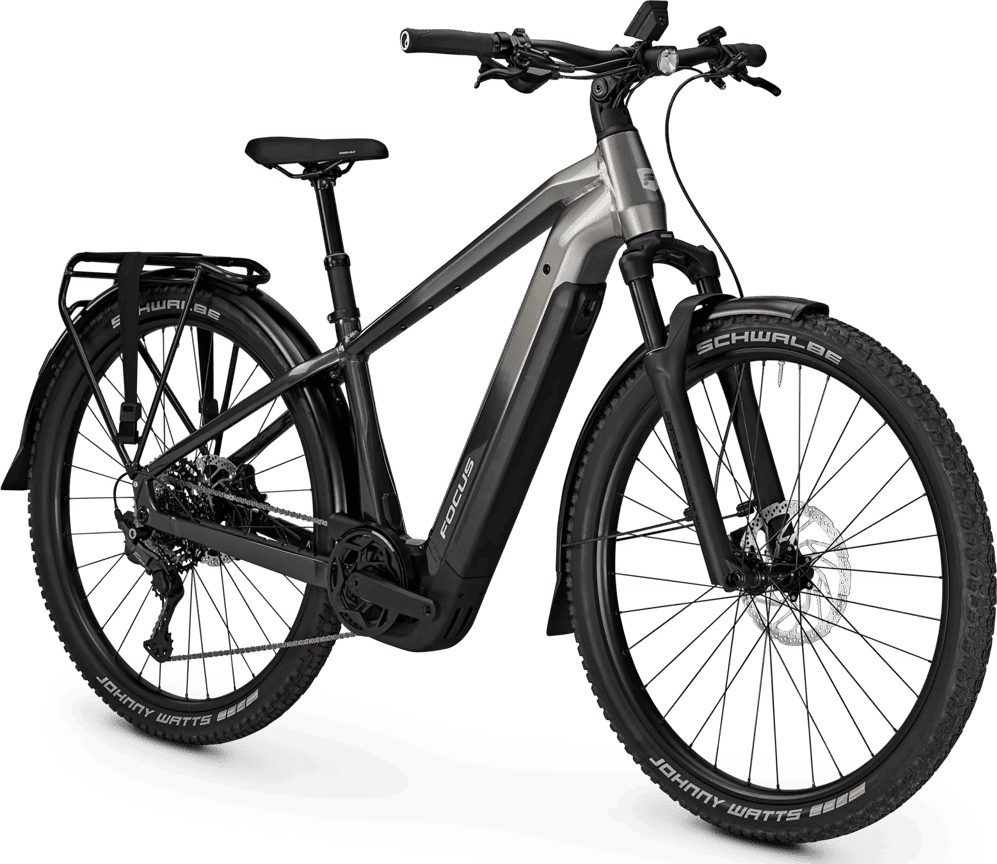

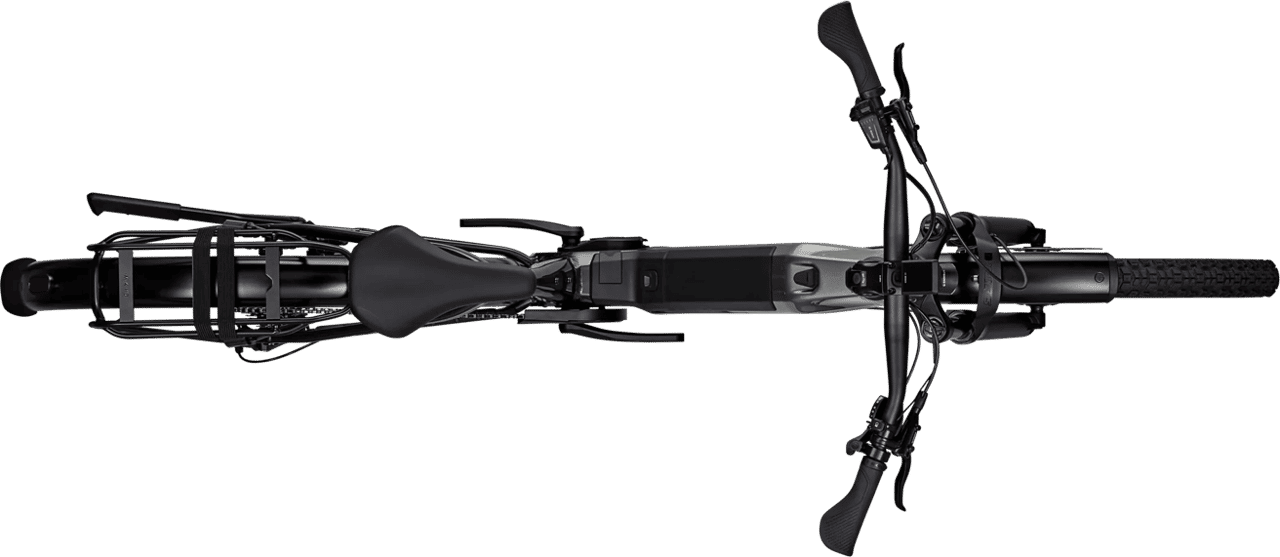

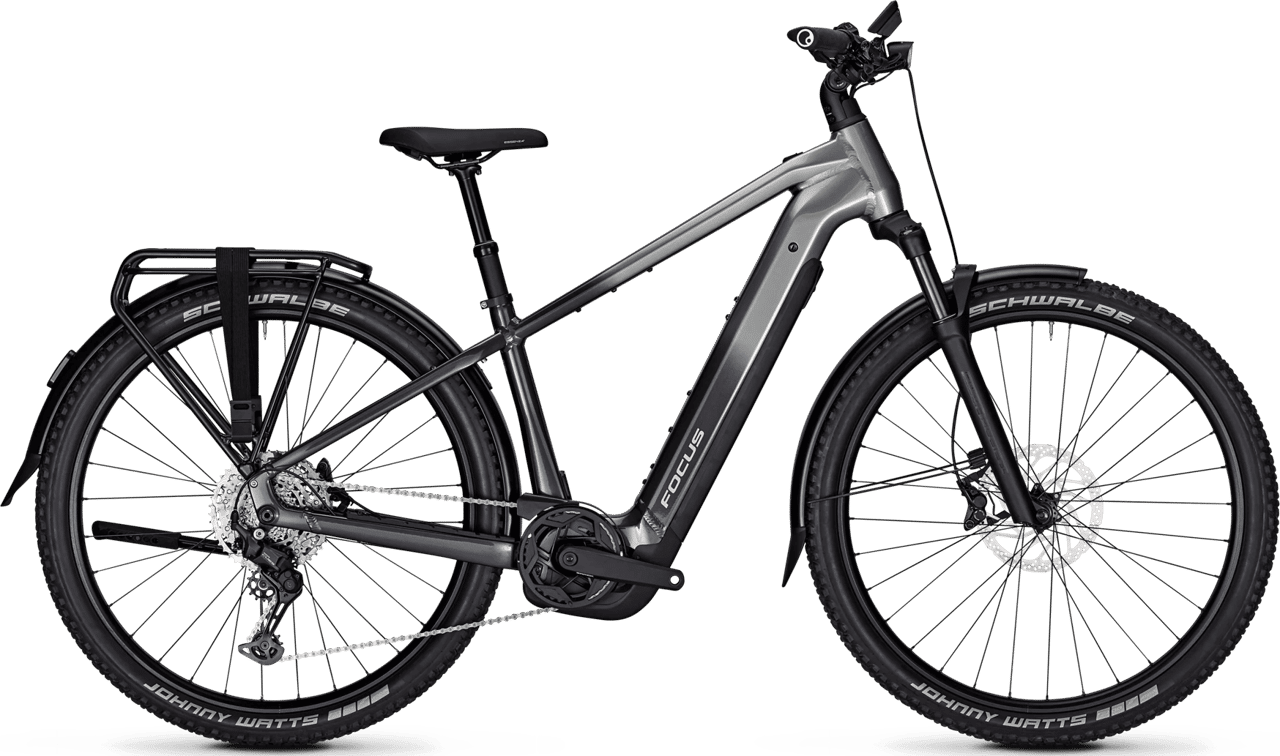

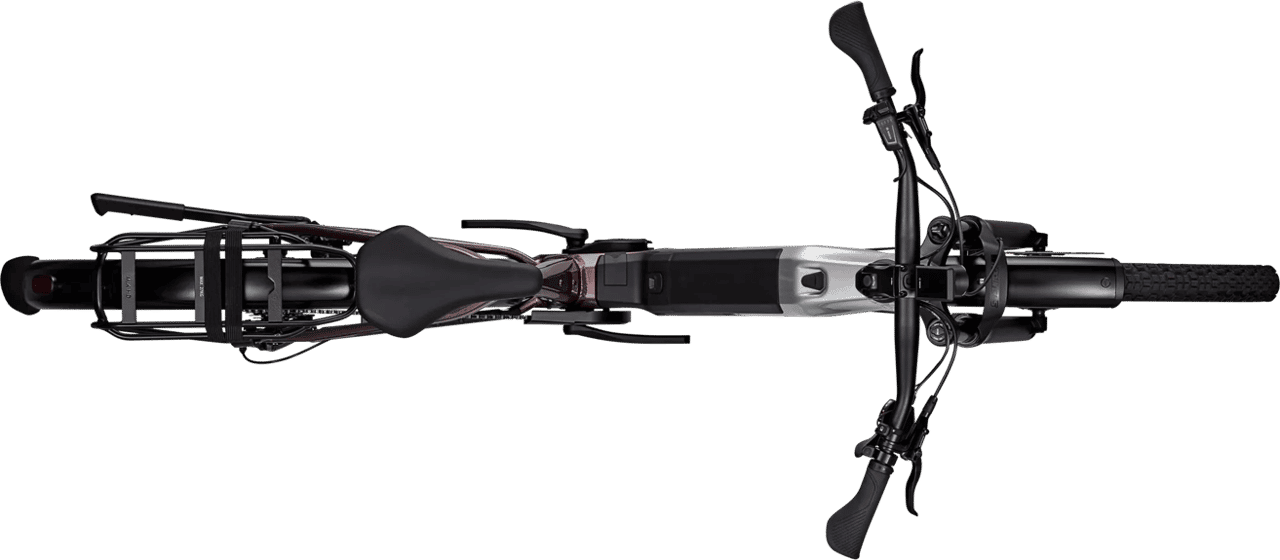

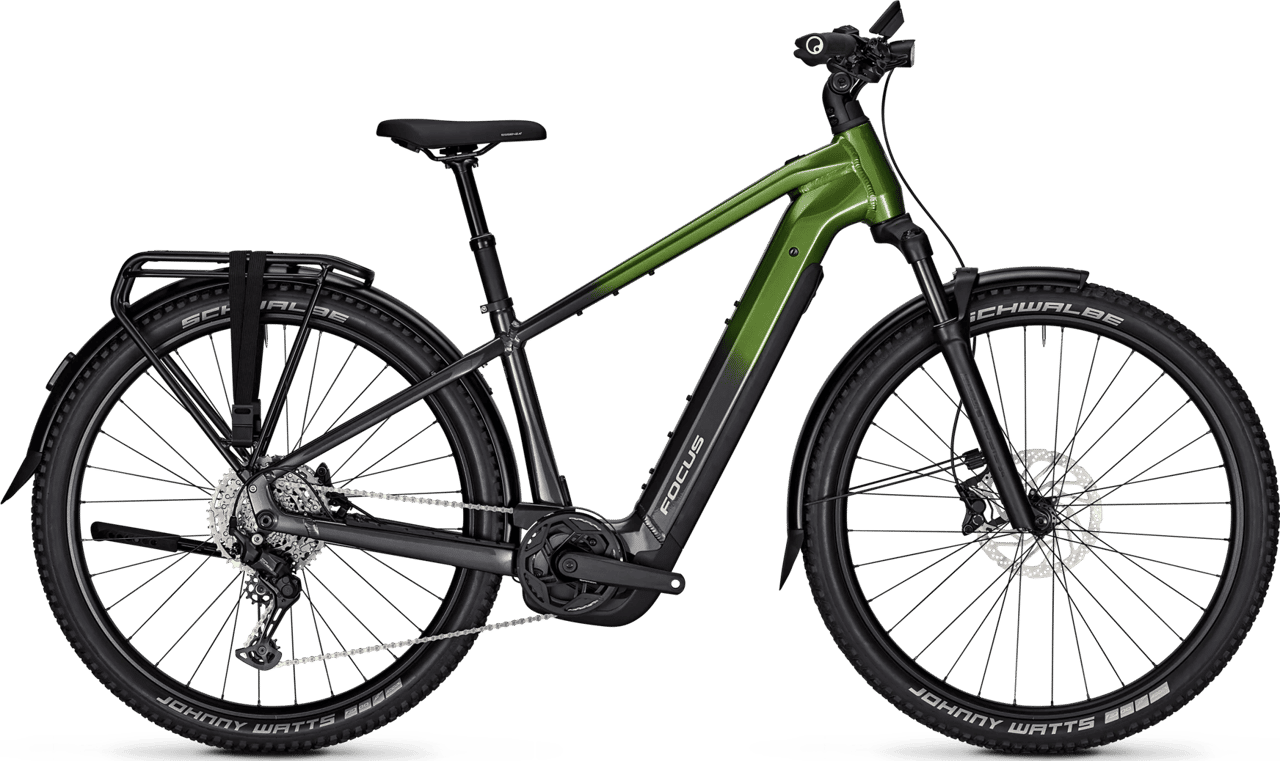

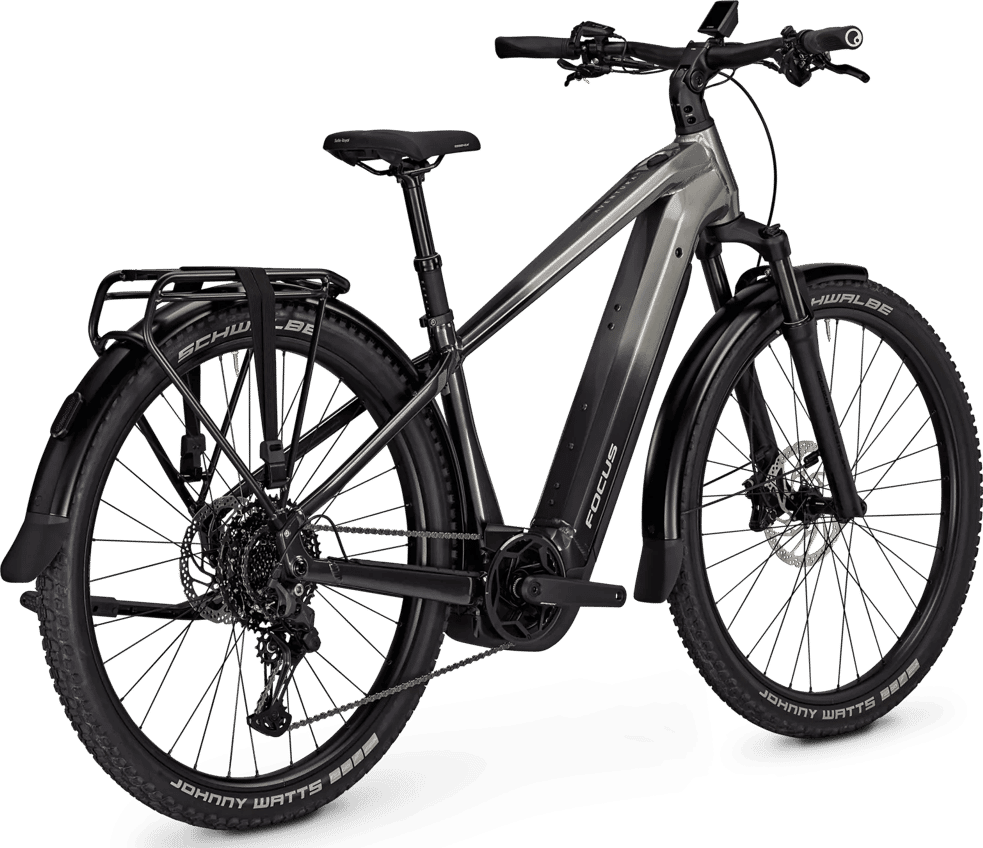

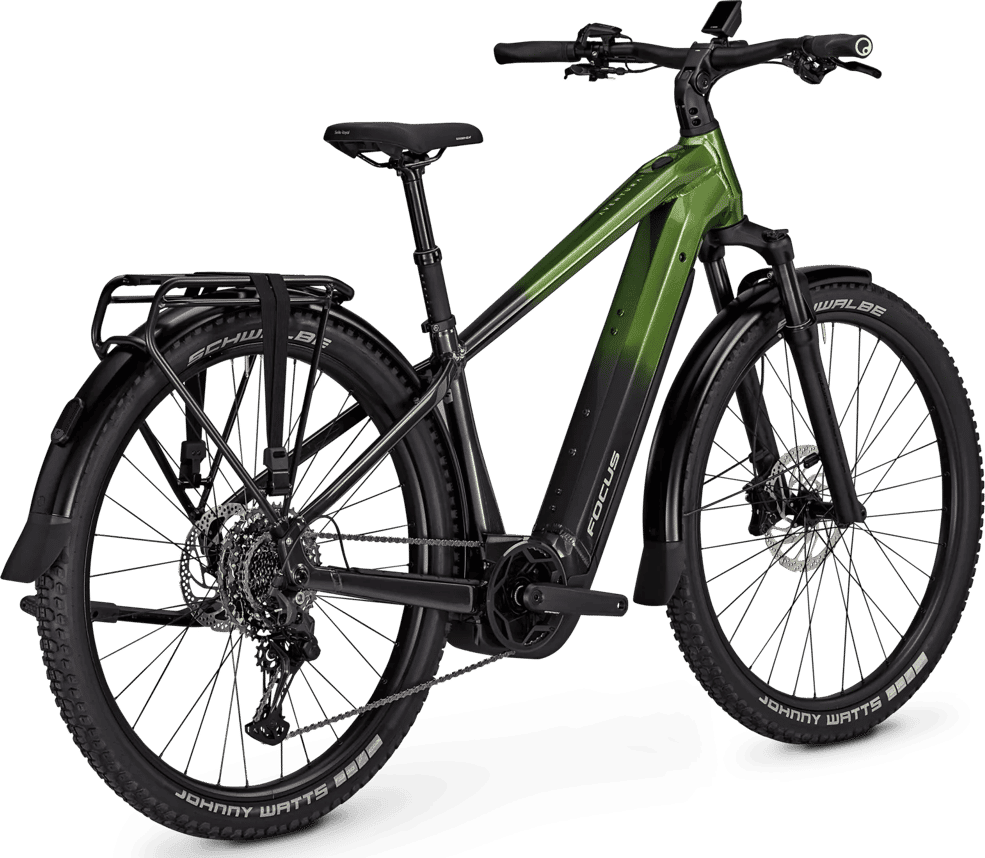

AVENTURA² 6.8

Geometry Specification
€4,399.00
Find the right frame sizes
N/A
Set up and set at the dealer in three weeks.
Sku Number
FO5080082v2024

AVENTURA² 6.8 Features

BOSCH CX e-drive & 750 (size S: 625) Wh battery

Fenders, pannier rack, stand and 90 Lux light

SHIMANO CUES 1x11 shifting

Awakens your inner explorer

  • Super powerful and dynamic e-motor

    The efficient Bosch Performance Line CX system supports your ride up to 25 km/h with powerful 85 Nm. A well-balanced geometry makes the AVENTURA² 6.8 ride agile and dynamic. The strongest e-motor of Bosch is perfectly integrated into the bottom bracket area.

  • Record-breaking range and easy-to-read display

    The Bosch Powertube battery with its record-breaking 750 Wh (size S: 625 Wh) is perfectly integrated into the down tube, yet it can also be removed at any time for charging. By adding a DualBattery or a PowerPack, you can also have up to 1.475 Wh (not possible for size S). Furthermore, the Intuvia 100 offers a big and easy-to-read display. Additionally, a USB-C port on the top tube gives you the opportunity to charge your devices.

  • Ready for anything

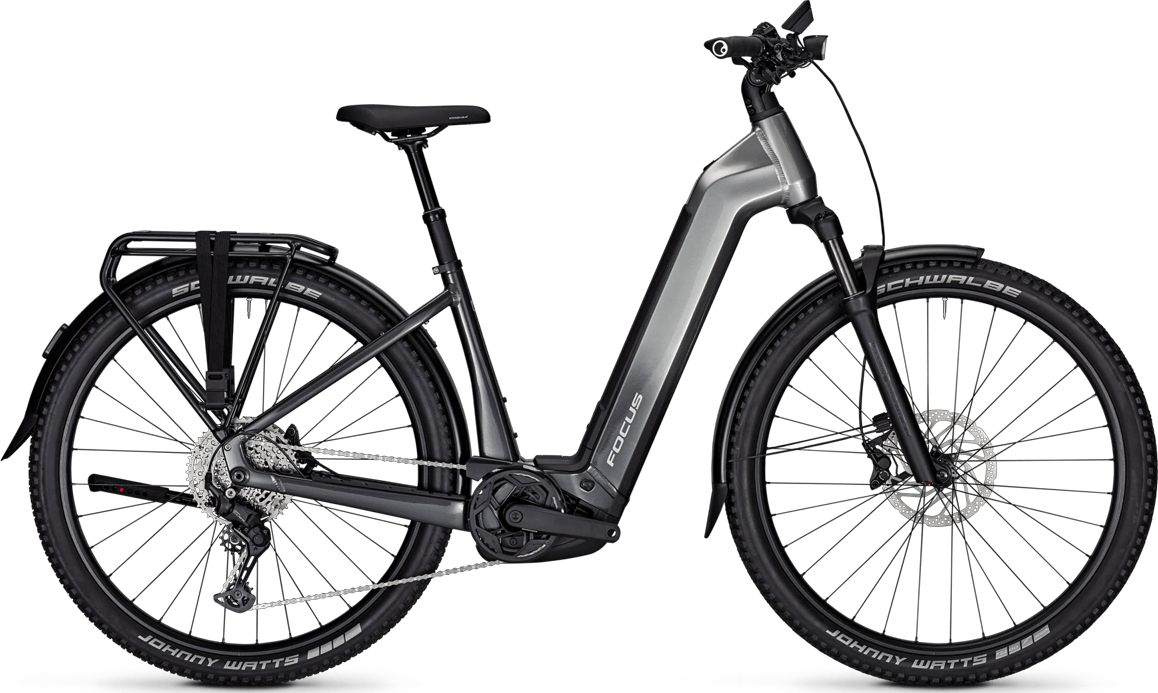

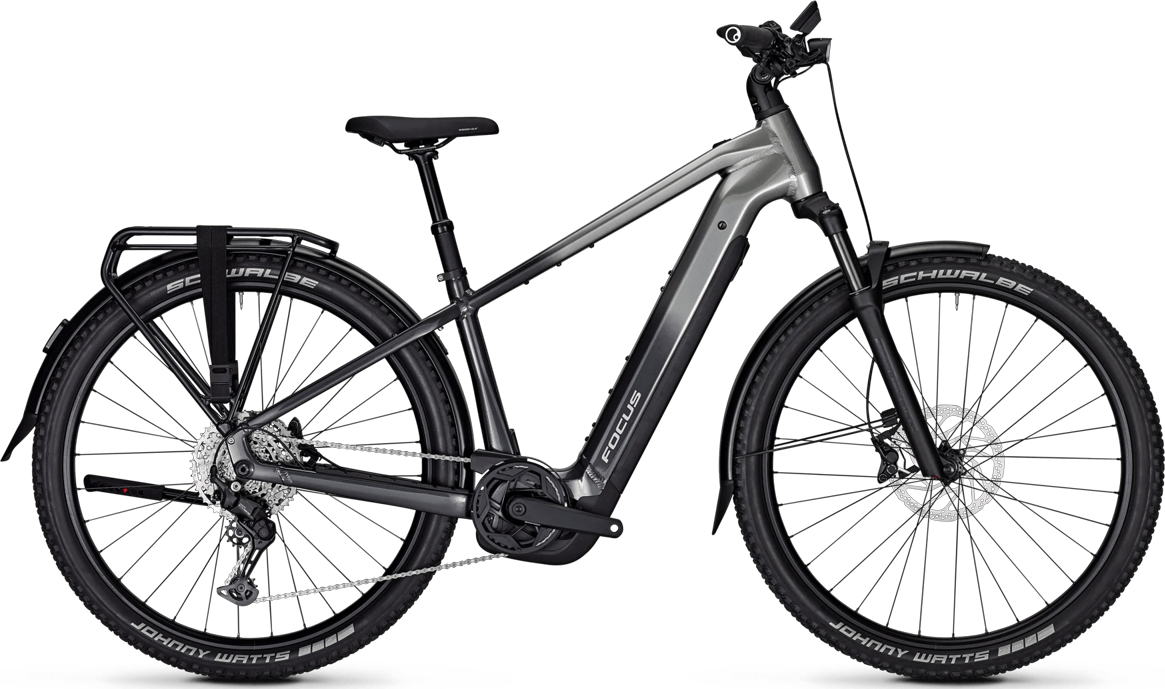

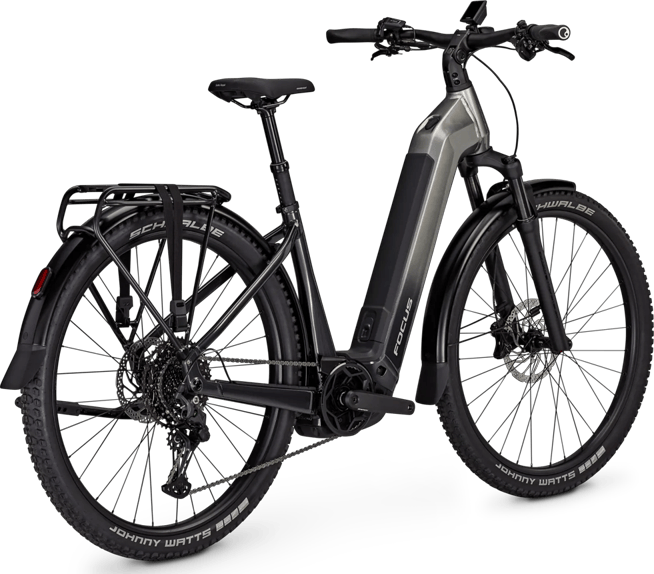

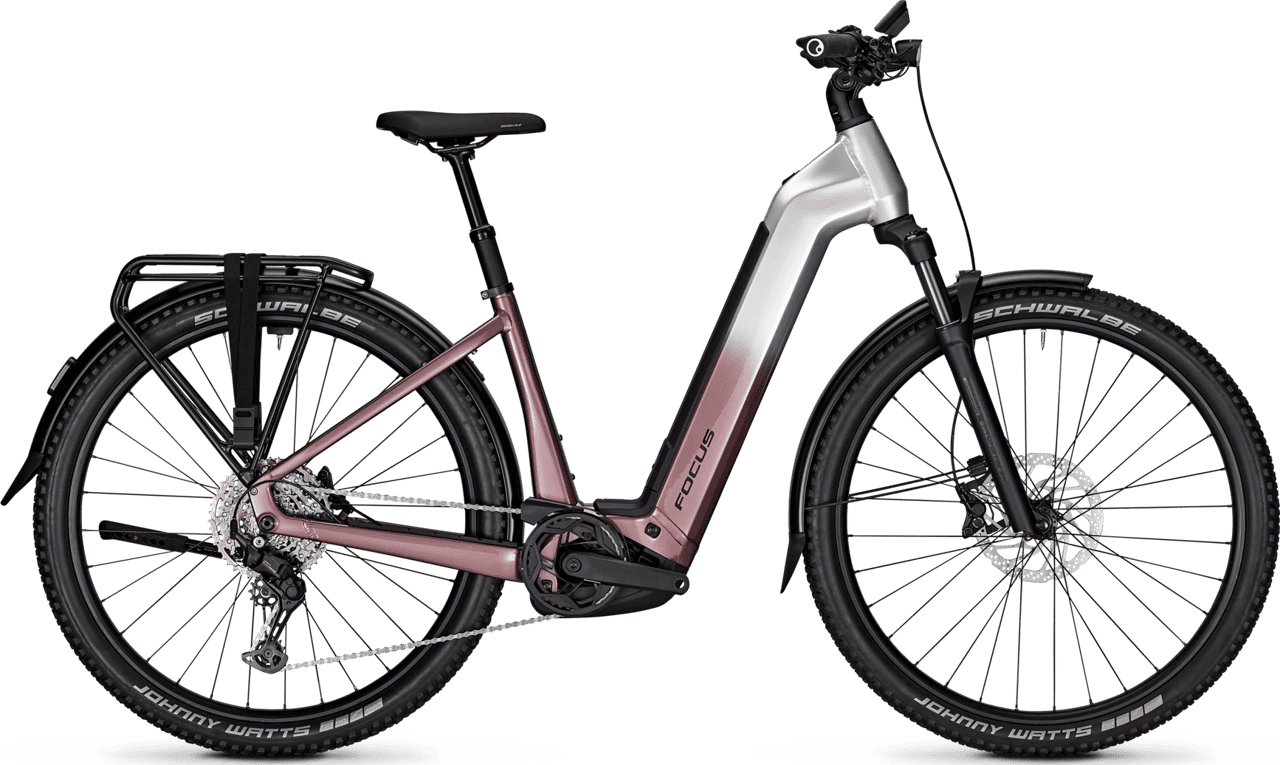

    Regardless of whether your journey lasts several days or you simply need to transport a lot of belongings: with its pannier rack, fenders, kickstand, lock mount and light, the AVENTURA² 6.8 is equally well-prepared for bikepacking trips and transporting heavy loads across the city. You can choose between a wave or a diamond frame: Easy to step in and out or more sportive – we have the frame shape you prefer. On top, the AVENTURA² 6.8 is approved for most trailers and for a system weight (rider plus gear and bike) of 150 kg. The ergonomic cockpit with a 30-degree stem and wide off-road tyres make your ride comfortable even off the beaten track. The C.I.S. (Cockpit Integration Solution) technology offers a clean cockpit with cable routing through stem and headset into the frame.

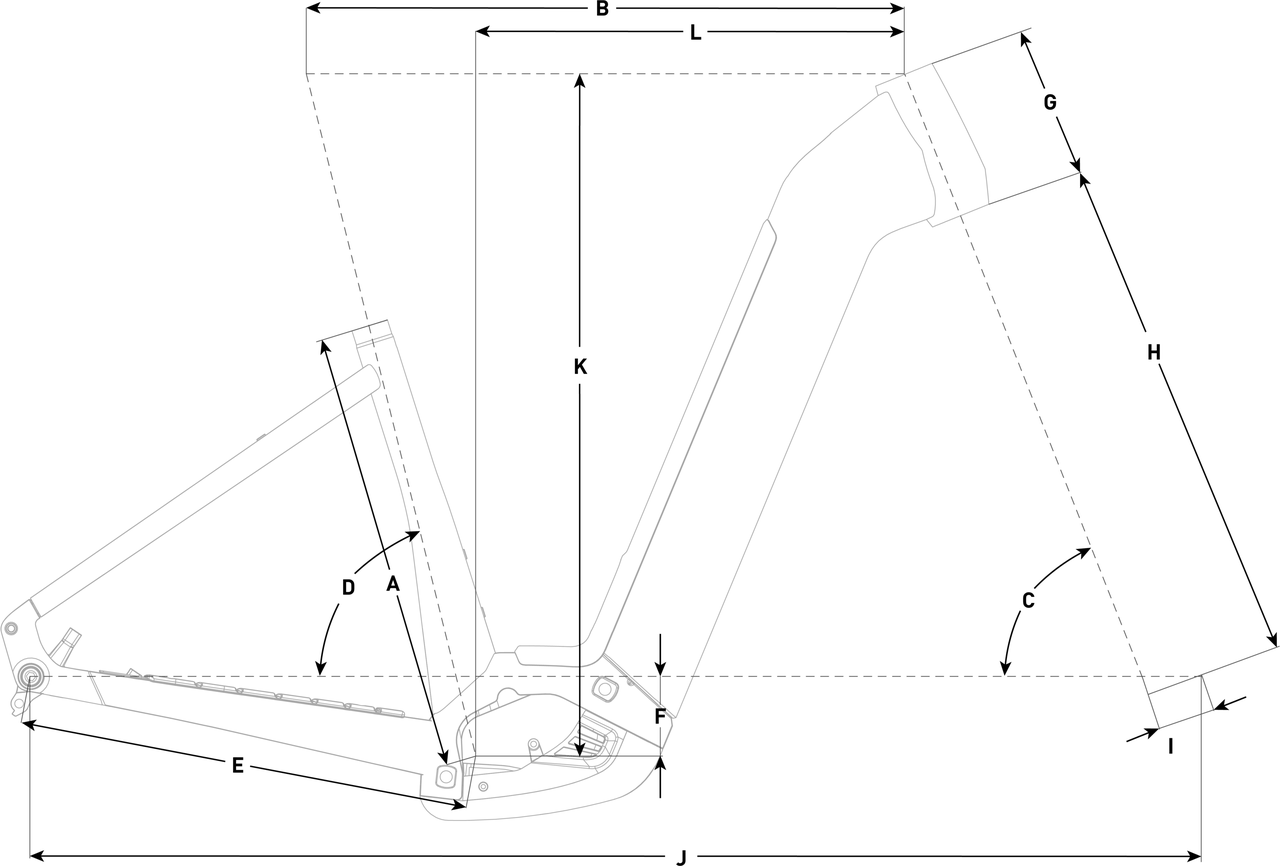

Geometry

S M L XL
Size in mm 400 440 480 520
Handlebar width 760 760 760 760
Stem length 90 90 90 90
Crank length 170 170 170 170
Seatpost length 350 350 350 350
A Seat tube length 400 440 480 520
B Top tube length 594 613 634 660
C Head angle (°) 67 68 68 68
D Seat angle (°) 74 73.5 73.5 73.5
E Chainstay length 470 470 470 470
F Bottom bracket drop 65 65 65 65
G Head tube length 130 135 140 160
H Fork length 515 515 515 515
I Fork offset 51 51 51 51
J Wheelbase 1175 1172 1191 1217
K Stack 642 650 656 675
L Reach 410 420 440 460
M Standover height 808 820 838 860

Specification

Crankset
FSA CK-320, aluminium
Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, USB-C port, internal cable routing, post mount 180 mm
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Grips
Herrmans Click
Stem
Aluminium, adjustable, 90 mm
Travel of suspension fork
100 mm
Fork
SR Suntour XCR 34 LO Air, 15x110 mm
Rear rack
Racktime Snap-It carrier, 2-leg, 25 kg max. load
Kickstand
rear stand, adjustable
Fenders
Kunststoff, mit Kantenschutz
Permissible system weight
150 kg
Rear derailleur
Shimano Cues
Chain
Shimano CN-HG601, 11-speed
Transmission of drive
vorne: 36, hinten: 11-45
Rear brake disc
180 mm
Front brake disc
180 mm
Shifter
Shimano Cues
Brakes front | rear
Shimano MT200 | Shimano MT200
Tyres front | rear
Schwalbe Smart Sam , 29 x 2,25" | Schwalbe Smart Sam , 29 x 2,25"
Rim frontfront front / rear
RODI TRYP25, 25-622
Front hub
Shimano TC500, 15x110 mm
Rim rear
RODI TRYP25, 25-622
Rear hub
Shimano TC500, 148 x 12 mm
Spokes
Zink, black
Chainring
Shimano CSLG 400, 11-G.
Saddle
Selle Royal Vivo
Seatpost
Aluminium, 31.6 mm
Headlight
Litemove RXE-90, high-beam, 90 LUX
Rear light
TRELOCK LS421, Brake light
Weight
26.4 kg (625 Wh)
26.4 kg (750 Wh)
Handlebar
Aluminium, 690 mm, rise: 8 mm, 31,8 mm
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Bottom bracket
Integrated in Drive Unit
Display & Remote
Bosch LED Remote + Intuvia 100
Battery
Bosch 625 Intube (625Wh)
Bosch PowerTube Li-Ion (750 Wh)
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
