ATLAS 8.7

ATLAS 8.7

ATLAS 8.7

ATLAS 8.7

ATLAS 8.7

ATLAS 8.7

ATLAS 8.7

ATLAS 8.7

Gallery

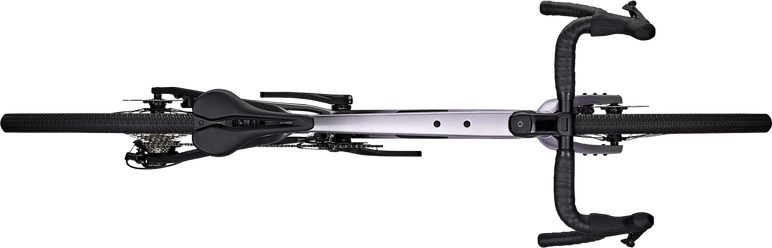

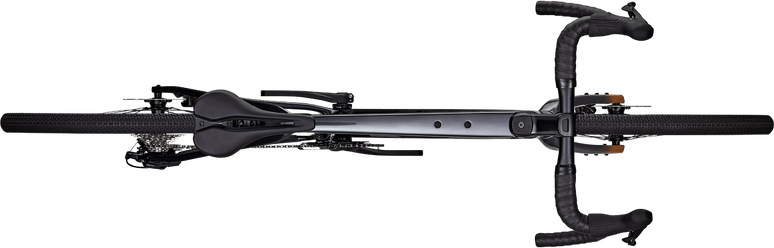

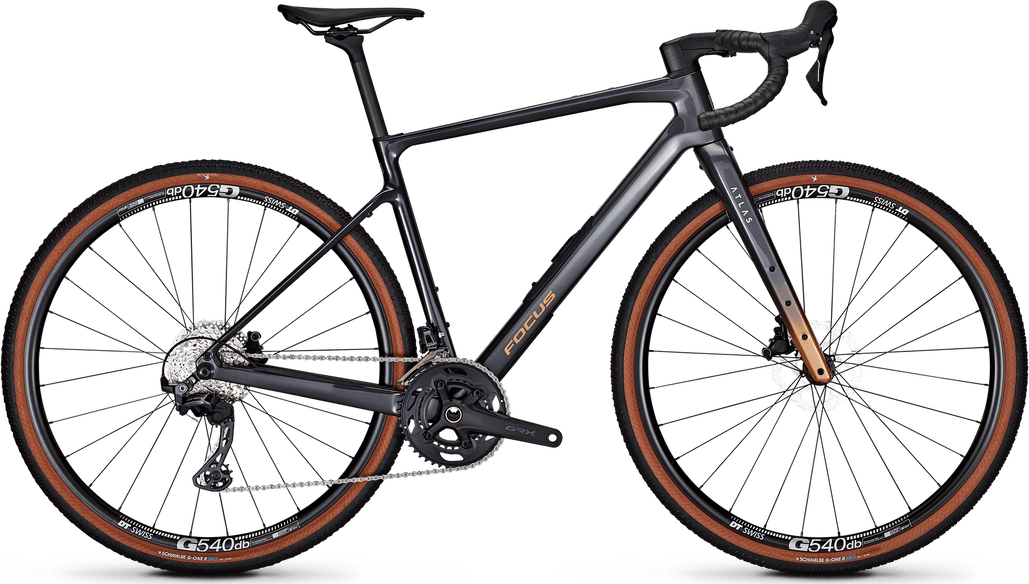

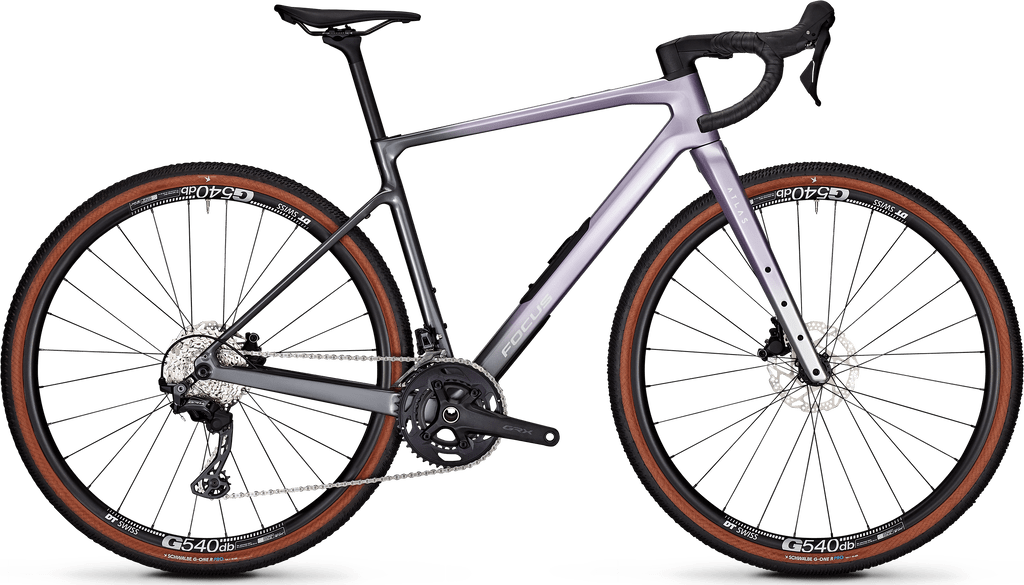

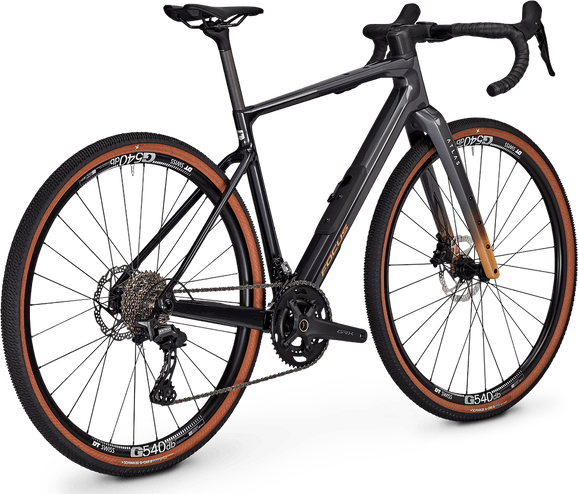

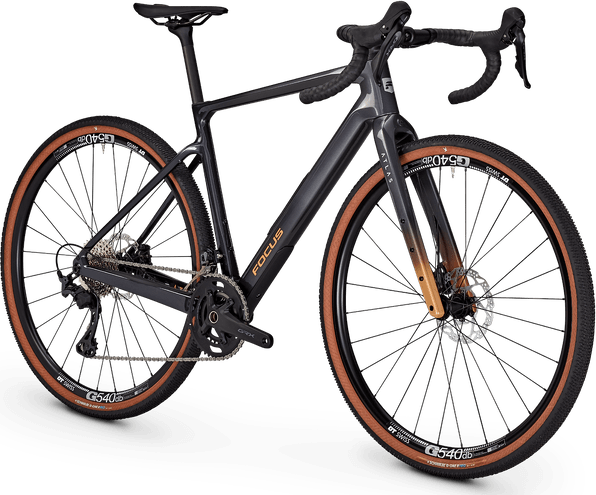

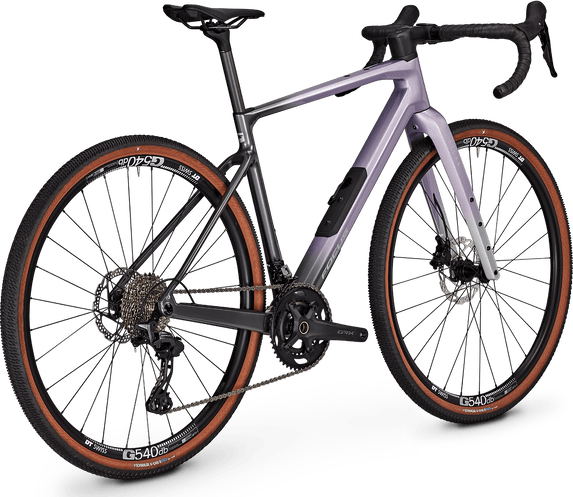

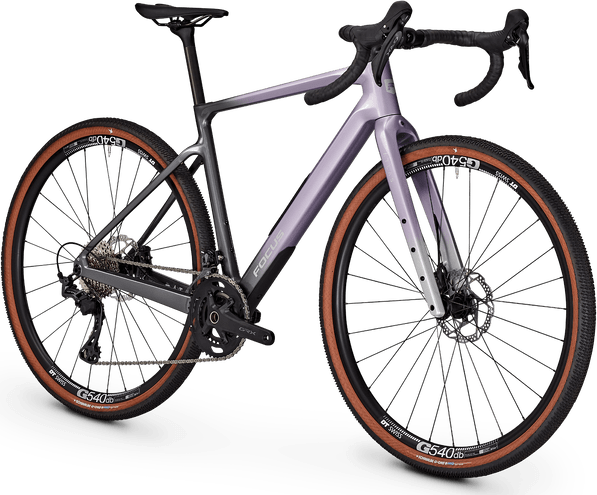

Exemplary bike presentation. Actual parts are shown in the specifications list.

ATLAS 8.7

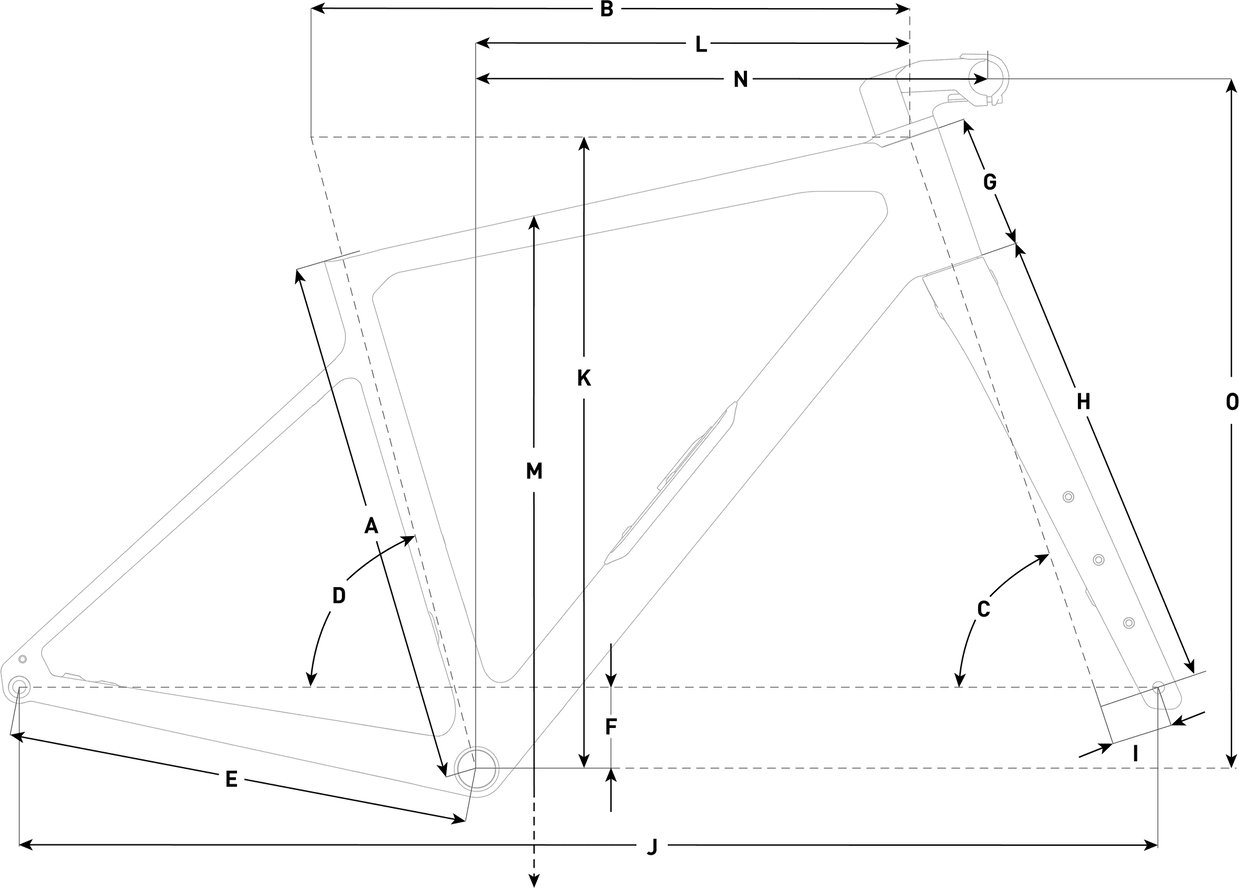

Geometry Specification

€2,699.00

N/A

Set up and set at the dealer in three weeks.

Sku Number

FB53-V1

ATLAS 8.7 Features

Carbon frame with Prep Pocket including Prep Pack

Shimano GRX 820 2x12 shifting

DT Swiss G540 rims with Alexrims hubs

Pushes boundaries

		XS	S	M	L	XL
	Size in mm	480	510	540	570	600
	Handlebar width	380	400	420	440	440
	Stem length	80	80	90	100	100
	Crank length	165	170	172.5	172.5	175
	Seatpost length	350	350	350	350	400
A	Seat tube length	425	455	485	515	545
B	Top tube length	511	535	550	566	596
C	Head angle (°)	70.5	71	71	71	71
D	Seat angle (°)	74.5	74	73.5	73.5	73
E	Chainstay length	425	425	425	425	425
F	Bottom bracket drop	75	75	75	75	75
G	Head tube length	100	110	130	150	180
H	Fork length	425	425	425	425	425
I	Fork offset	53	53	53	53	53
J	Wheelbase	1016	1030	1041	1058	1083
K	Stack	546	557	576	595	623
L	Reach	375	390	395	405	420
M	Standover height	770	789	813	836	863

Frame

Carbon technologie, disc, 142x12 mm thru axle, flat mount 160 mm

Special Features

I.C.S TOOL BAG

Fork

Carbon technologie, disc, 142x12 mm thru axle, flat mount 160 mm

Shifter

Shimano GRX 610

Front derailleur

Shimano GRX 820

Rear derailleur

Shimano GRX 820, 12-speed

Cassette

Shimano CS-HG710, 11-36T

Chain

Shimano CN-M6100

Crankset

Shimano GRX610, 46/30 T

Bottom bracket

Shimano, BSA 24 mm

Handlebar

Focus Gravel Bar, alloy, 70 mm, 114 mm, 16°

Stem

FOCUS C.I.S. 2.0 integrated, -8°, with alloy Garmin / Wahoo-Mount

Headset

ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated

Saddle

Focus

Seatpost

Carbon, 27,2 mm, set-back: 15 mm

Brakes front | rear

Shimno GRX 610 | Shimno GRX 610

Disc brake rotors

Shimano RT54, front: 180 mm (Size L-XL), 160 mm (Size XS-M) / rear: 160 mm

Rim frontfront front / rear

DT Swiss G540, alloy, rim height: 20 mm, width: 24-622

Rim rear

DT Swiss G540, alloy, rim height: 25 mm, width: 24-622

Front hub

Alexrims BRD-503

Rear hub

Alexrims BRD-504

Tyres front | rear

Schwalbe G-One R Pro, super race, tubeless ready, 45-622 | -

Weight

9.7 kg (-)

Permissible system weight

135 kg

* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
