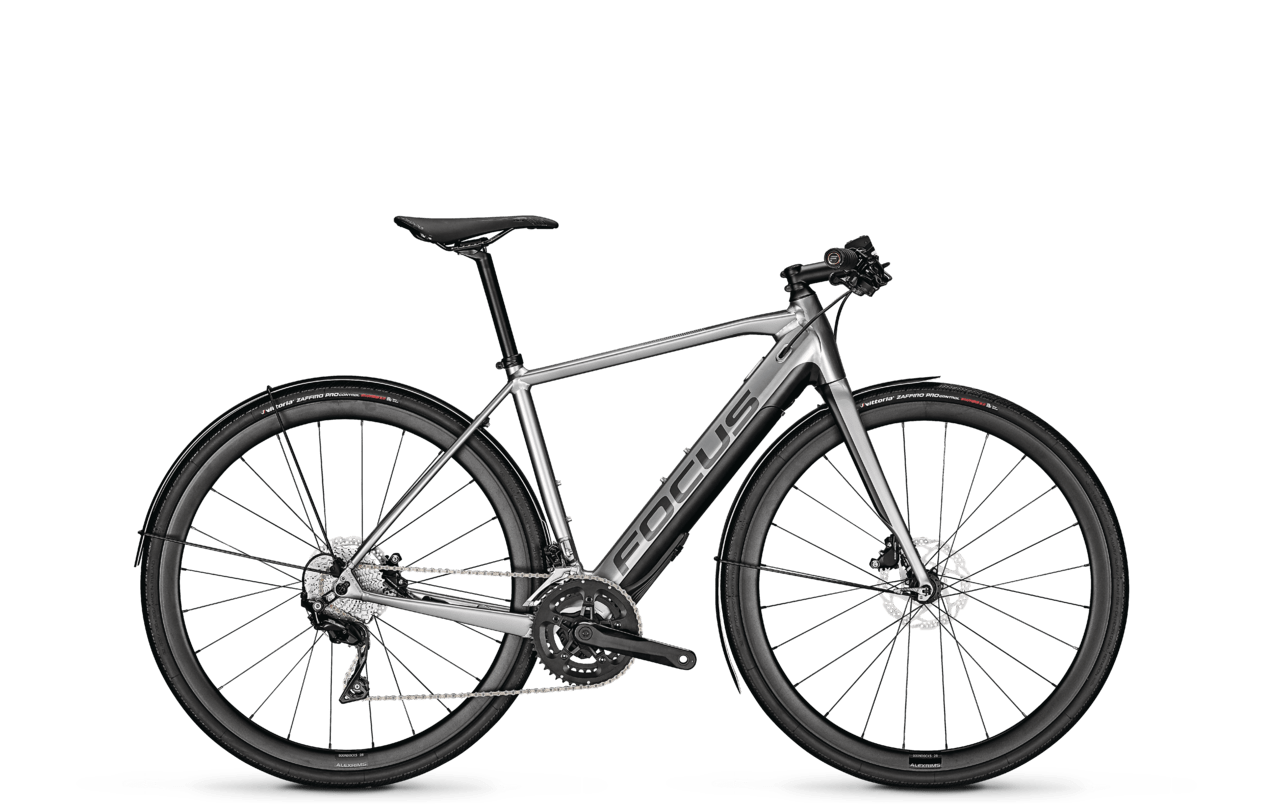

PARALANE² 6.6 COMMUTE

Geometry Specification
A$5,499
Find the right frame sizes
SKU
FO5080073v2020

Provides support at just the right moment

  • Combines the advantages of a road bike with those of an e-bike

    Light and agile, but with an extra push up to 25 km/h from the Fazua Evation e-drive when you need a little extra support: the removable motor/battery unit with its 252 Wh battery capacity is uncoupled from the drive and only noticeable when it is making your ride easier. If you want to ride without any support, you can easily replace the Fazua motor (3,2 kg) with a lightweight cover.

  • Made for commuting

    Matching fenders and a flat bar make the PARALANE² 6.6 COMMUTE the perfect companion for your daily commute to work. Disc brakes ensure you can brake safely and reliably in any weather conditions. Thanks to the maximum tyre clearance of up to 35 mm, you can mount wider tyres and those with a tread pattern with knobs – depending on what route you commute.

  • Optimal shifting function

    Thanks to our revolutionary Road Boost Standard with its broad 148 and 110 mm R.A.T.* axles, we guarantee an optimal chain line for e-road bikes and therefore an optimal shifting function and less wear. Furthermore, wheel changes can be carried out fast and easily within seconds with our R.A.T.* thru-axles.

Geometry

S M L XL
Size 51 54 57 60
Size (MM) 555 480 520 510
Handlebar width 700 700 700 700
Stem Length (MM) 100 110 110 120
Crankarm length 170 170 175 175
A Seat tube length (MM) 350 350 350 350
B Effective Top Tube (MM) 577 527 676 547
C Head Tube Angle (°) 72.5 71.5 67 72
D Effective Seat Tube Angle (°) 73.5 74.5 74 73.5
E Chainstay length (MM) 415 415 435 415
F Bottom bracket drop (MM) 75 75 65 75
G Head Tube Length (MM) 200 150 140 165
H Fork construction height (MM) 383 383 531 383
I Pre-raked fork (MM) 46 46 44 46
J Wheelbase length (MM) 1021 991 1205 996
K Stack (MM) 615 566 667 582
L Reach (MM) 394 370 485 375

Specification

Frame
Aluminium E-Road, disc, road boost 148x12 mm thru axle, R.A.T Evo technology, flat mount 160 mm, internal cable routing
Frame material
Aluminium
Fork
Carbon, disc, road boost 110x12 mm, thru axle, R.A.T Evo technology, flat mount 160/140 mm, internal cable routing
Motor
FAZUA evation, 60 Nm, 250 W
Battery Watt-hours
250 Wh
Battery Ampere hours
7 Ah
Display
FAZUA evation 1.0 remote
Shifter
Shimano RS700
Front derailleur
Shimano 105 R7000
Rear derailleur
Shimano 105 R7000
Sprocket
Shimano 105 R7000
Chain
Shimano CN-HG601
Crankset
FSA CK-746, aluminium
Transmission of drive
front: 46/34, rear: 11-34
Bottom Bracket
-
Handlebar
Aluminium, flatbar, 31,8 mm, 700 mm
Grips
Focus Roadie Grip
Stem
BBB Rider BHS-109, 31.8mm, 7°
Headset
IS42/28.6 - IS52/40
Saddle
Prologo Scratch
Seatpost
BBB Basic, Aluminium, 27,2mm, 350mm
Brakes
Shimano RS405
Brake lever
Shimano BL-RS600/BR-RS405
Brake
Disc
Wheelset
Alex Rims Boondocks, disc center-lock, aluminium, 110x12/148x12 mm road-boost
Tires
Vittoria Zaffiro Pro, 700 x 32C, Folding
Fender
Curana C-Lite
Gears
20
Bike weight incl. battery in kg.
15,95 kg
Size
51,54,57,60
* Subject to technical modification without notice. Errors and omissions excepted. ** Weight in size M, of standard specification and without pedals.
