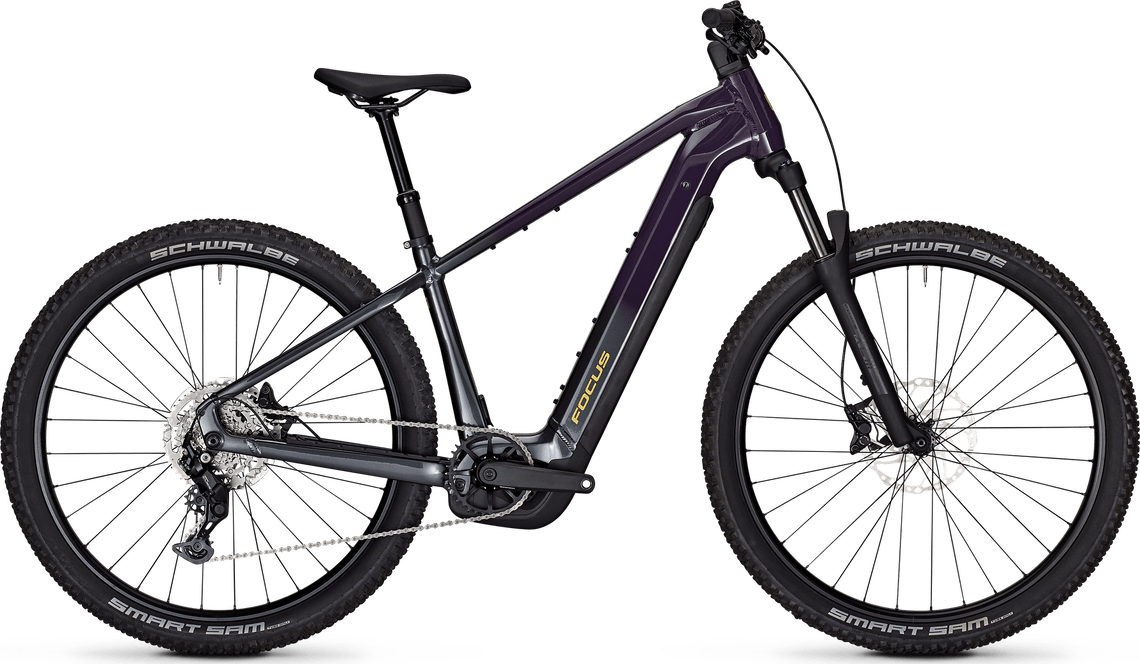

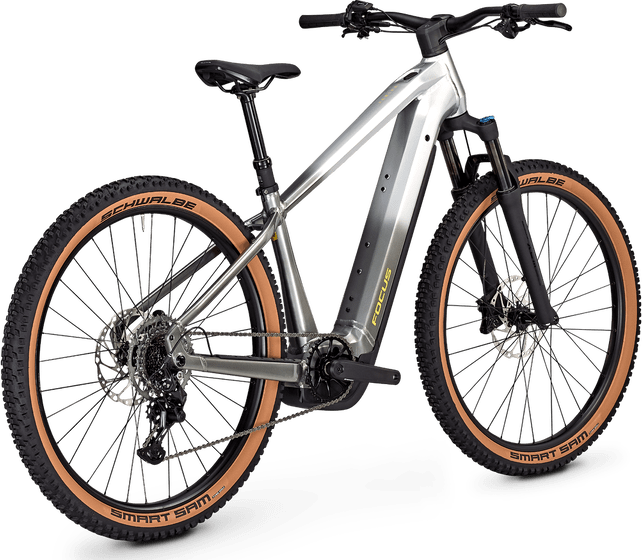

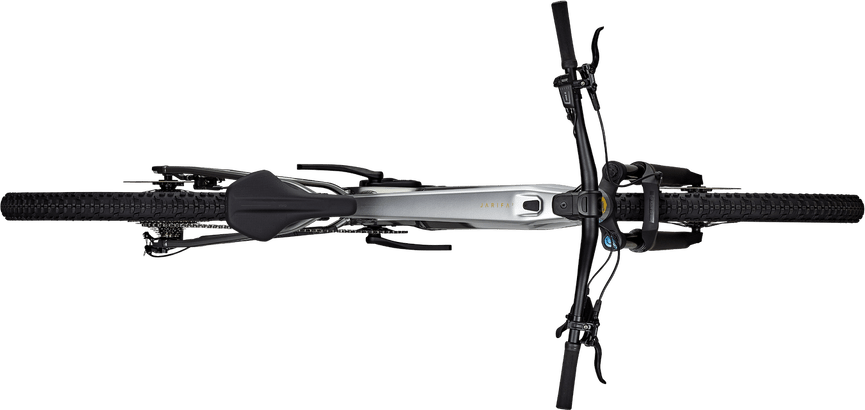

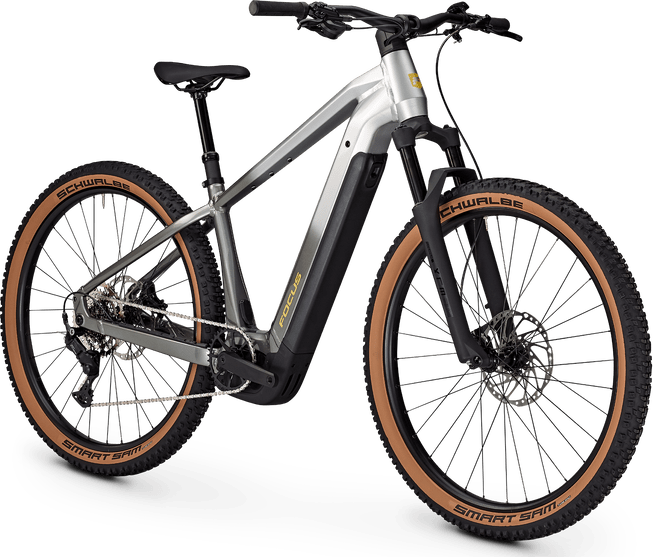

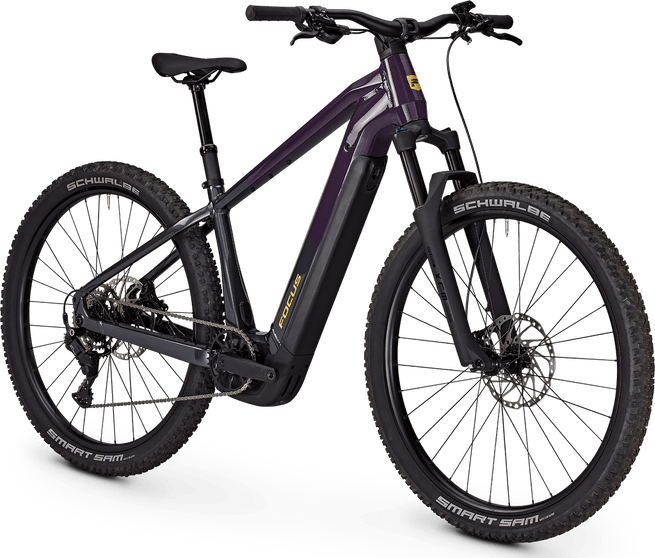

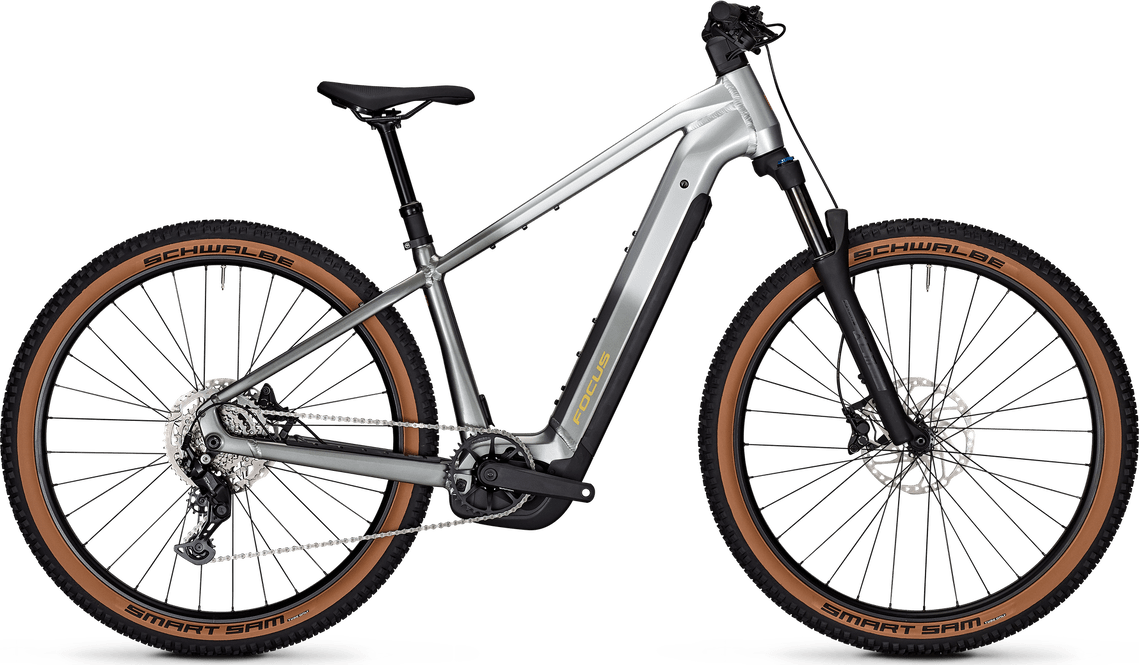

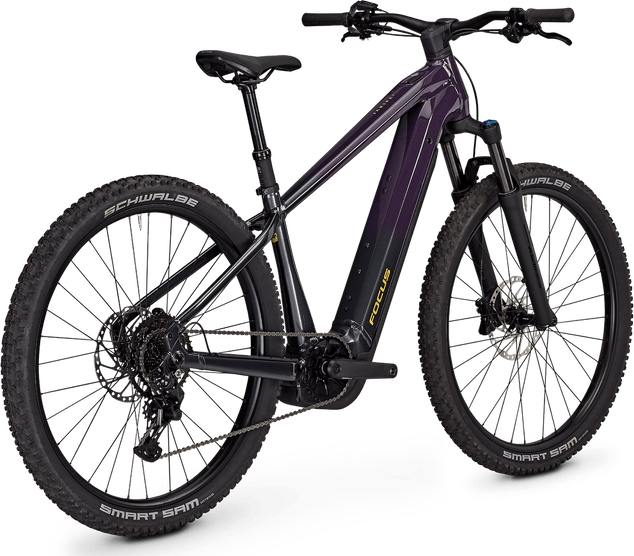

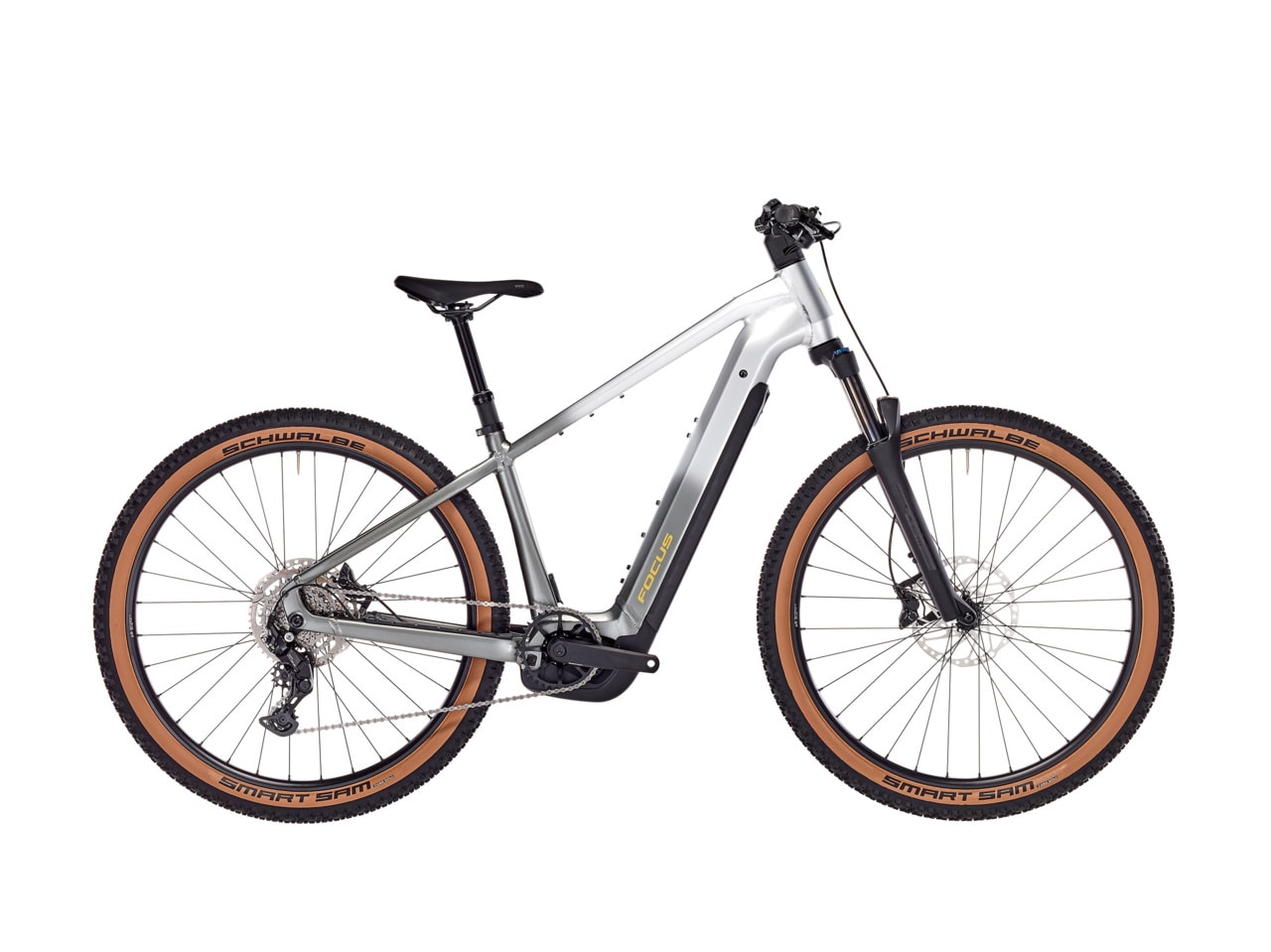

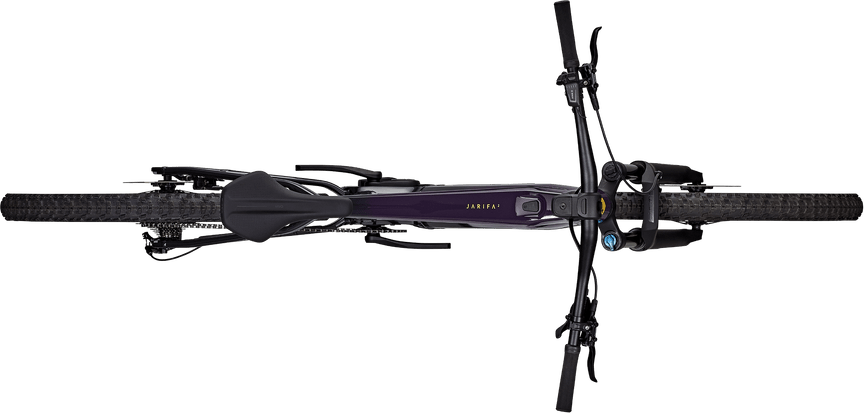

JARIFA² 6.7
JARIFA² 6.7 Features
Bosch Performance e-drive & 540 or 600 Wh battery
29" wheels (size XS: 27,5") & Shimano Cues 1x9 shifting
SR Suntour XCM 34 Coil fork & 4-piston brakes
Escape the daily grind
-
Powerful and silent e-motor
The efficient Bosch Performance Line Smart System supports your ride up to 25 km/h with 75 Nm. A well-balanced geometry makes the JARIFA² 6.7 ride agile and safe. The strong e-motor of Bosch is perfectly integrated into the bottom bracket area.
-
The battery size that is right for you
The Bosch PowerTube battery with 540 or 600 Wh is perfectly integrated into the down tube, yet it can also be removed at any time for charging. With an additional Bosch PowerMore 250 range extender you get 250 Wh extra, in total up to 850 Wh. Sizes M, L and XL are compatible with Bosch's DualBattery system.
-
Ready for adventure, and versatile with retrofit options
The JARIFA² 6.7 combines MTB and trekking DNA. With a dropper post and mountain bike tyres it perfectly handles easy trails. It is approved for two-track trailers and for a system weight (rider plus gear and bike) of 150 kg. Considering the needs of smaller riders, the JARIFA² models in size XS roll on 27,5" wheels, while still offering the same battery power as the bigger sizes. Cables for lights are already installed and can be mounted by our dealers. The JARIFA² can be easily retrofitted with rack, fenders, stand or light system thanks to respective mounting points.

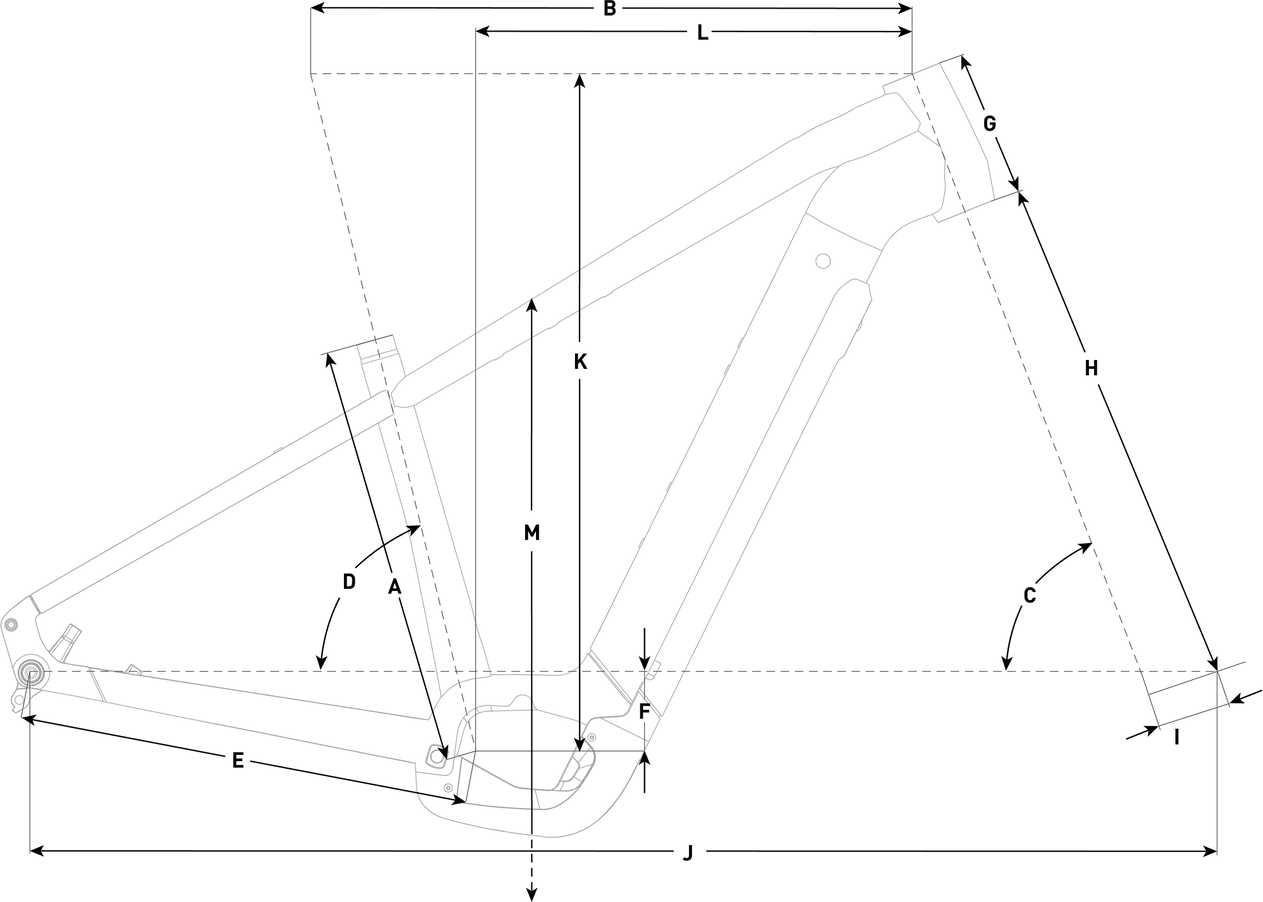

Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| Size in mm | 360 | 400 | 420 | 455 | 480 | |
| Handlebar width | 760 | 760 | 760 | 760 | 760 | |
| Stem length | 50 | 50 | 50 | 50 | 50 | |
| Crank length | 165 | 165 | 165 | 165 | 165 | |
| A | Seat tube length | 360 | 400 | 420 | 455 | 480 |
| B | Top tube length | 577 | 599 | 626 | 649 | 672 |
| C | Head angle (°) | 67 | 66 | 67 | 67 | 67 |
| D | Seat angle (°) | 74 | 73 | 73 | 73 | 73 |
| E | Chainstay length | 460 | 470 | 470 | 470 | 470 |
| F | Bottom bracket drop | 45 | 57 | 57 | 57 | 58 |
| G | Head tube length | 130 | 130 | 150 | 160 | 170 |
| H | Fork length | 527.5 | 541.5 | 541.5 | 541.5 | 541.5 |
| I | Fork offset | 44 | 44 | 44 | 44 | 44 |
| J | Wheelbase | 1151 | 1180 | 1197 | 1220 | 1244 |
| K | Stack | 636 | 657 | 680 | 690 | 699 |
| L | Reach | 395 | 400 | 420 | 440 | 460 |
| M | Standover height | 781 | 806 | 823 | 837 | 858 |
Specification
Bosch PowerTube Li-Ion (600 Wh)
Mach1 Trucky32, alloy, 29"
Mach1 Trucky32, alloy, 29"
Schwalbe Smart Sam Performance Line, 29 x 2,6" | Schwalbe Smart Sam Performance Line, 29 x 2,6"
23.3 kg (600 Wh)
