FOCUS SAM Lite Features
Robust and lightweight aluminium frame with 160 mm suspension travel and Twin Bearing System
DT Swiss M1900 wheelset
Rock Shox Yari RC fork and Monarch Plus RC3 shock
No obstacle is too great
Optimum suspension performance for every situation
The F.O.L.D. kinematics, specially tailored to demanding Enduro requirements, ensure a perfectly balanced combination: F.O.L.D. is extremely sensitive in small bumps while being progressive enough to prevent harsh bottom out.
Light, robust & low-maintenance
High-quality bearing, closed rear triangle and a shock that is protected against mud – we leave nothing to chance. It goes without saying that we also thought to add a bottle cage.
The favourite of our FOCUS Trail Team.
The FOCUS SAM geometry is optimised for Enduro-style riding. Big mountains, demanding trails, the SAM is tried and tested.

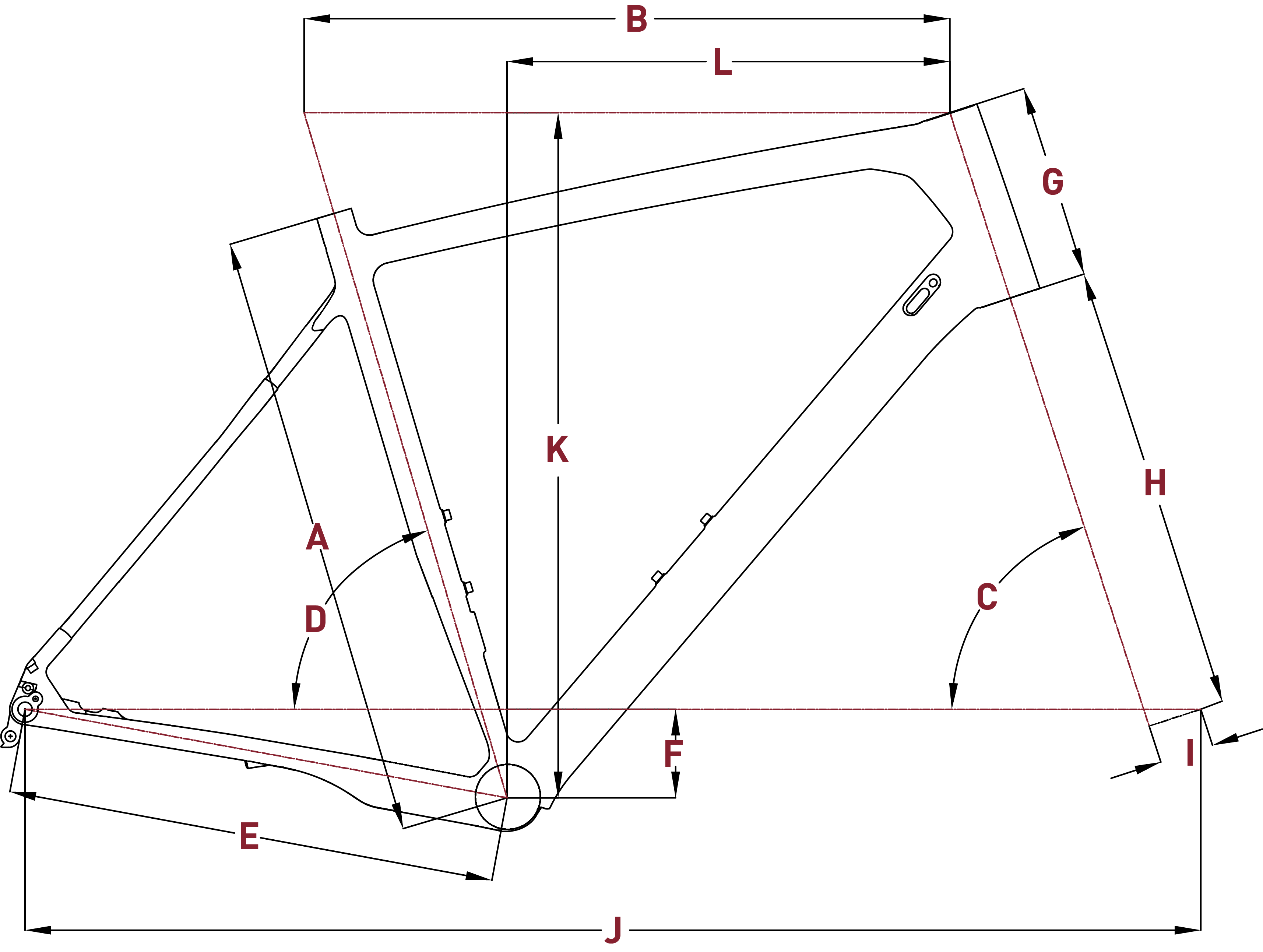

|A||EFFECTIVE SEAT TUBE LENGTH (MM)||420||450||480||510|
|B||Effective Top Tube (MM)||580||595||615||635|
|C||Head Tube Angle (°)||65.8||65.8||65.8||65.8|
|D||Effective Seat Tube Angle (°)||75||75||75||75|
|F||BB Drop (MM)||7||7||7||7|
|G||Head Tube Length (MM)||100||105||120||135|
|H||Fork Length (MM)||555||555||555||555|
|I||Fork Offset (MM)||42||42||42||42|
